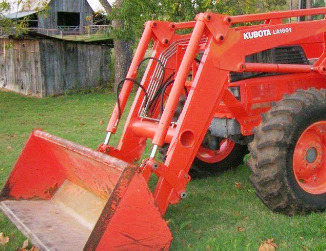

Kubota LA1601 Front End Loader
The
Kubota LA1601 NSL front end loader is designed for Kubota M125X tractor. The
front end loader has double acting hydraulic bucket and lift cylinders. The
Kubota LA1601 front end loader has a lift capacity of 3858 lbs (1749 kg) at
bucket pin to max height of 145.7" (3700 mm), and breakout force (bucket on
ground) of 6110 lbs (2771 kg).
The clearance with a bucket dumped is 114.2" (2900 mm) at maximum dump
angle of 55 degrees. The estimated cycle times are 4.3 seconds lifting
to maximum height, and 2.6 seconds maximum bucket dumping. The Kubota
LA1601 loader is compatible with the following buckets: a 84" (2130 mm)
standard material bucket with a rated capacity of 0.68 m3 (23.3 cu.ft),
and 96" (2430 mm) heavy-duty material bucket with a rated capacity of
0.98 m3 (34.5 cu.ft).
| Tractor Models |
Kubota M125X |
| Front Tires |
14.9R24 |
| Rear Tires |
18.4R38 |
| Hydraulic System Flow, gpm (lpm) |
20.0 (75.7) |
| Loader Model |
Kubota LA1601 |
| Leveling System |
Non self leveling |
| Net Weight (approximate), lb (kg) |
1550 (705) |
| Width, in (mm) |
84 (2130) |
| Struck Capacity, cu.ft (m3) |
20.1 (0.55) |
| Heaped Capacity, cu.ft (m3) |
23.3 (0.68) |
| Weight, lbs (kg) |
500 (225) |
| Heavy-Duty Material Bucket |
| Width, in (mm) |
96 (2430) |
| Struck Capacity, cu.ft (m3) |
28.3 (0.81) |
| Heaped Capacity, cu.ft (m3) |
34.5 (0.98) |
| Weight, lbs (kg) |
650 (295) |
| Maximum Lift Height to Pivot Pin, in (mm) |
145.7 (3700) |
| Clearance with Bucket Dumped, in (mm) |
114.2 (2900) |
| Reach at Maximum Lift Height, in (mm) |
31.7 (800) |
| Maximum Dump Angle, degrees |
55 |
| Reach with Bucket on Ground, in (mm) |
90 (2280) |
| Maximum Rollback Angle, degrees |
40 |
| Lift Capacity to Max Height at Pivot Point, lbs (kg) |
3858 (1749) |
| Lift Capacity to Max Height at 31.5" (0.8m) from Bucket Pivot Point, lbs (kg) |
3285 (1490) |
| Lift Capacity to 59" (1.5m) Height at Pivot Point, lbs (kg) |
5004 (2269) |
| Lift Capacity to 59" (1.5m) Height at 31.5" (0.8m) from Bucket Pivot Point, lbs (kg) |
4797 (2175) |
| Max Breakout Force at Bucket Pivot Point, lbs (kg) |
6110 (2771) |
| Max Breakout Force at 31.5" (0.8m) from Bucket Pivot Point, lbs (kg) |
5335 (2419) |
| Loader raise, sec. |
4,3 |
| Loader lower, sec. |
3,6 |
| Bucket dump, sec. |
2,6 |
| Bucket rollback, sec. |
2,6 |
