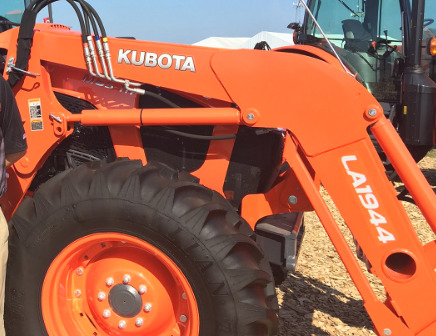

Kubota LA1944 Front End Loader
The
Kubota LA1944 non self leveling front end loader is fitted to Kubota M6S-111
tractor. The front end loader has double acting lift and bucket hydraulic
cylinders. The loader’s maximum lift height is 145.7 inches (3700 mm) at pin,
and bucket dump clearance is 114.2 inches (2900 mm).
The lifting capacity is 4178 lbs (1895 kg) to full height at pin, and
boom breakout force is 5589 lbs (2535 kg). The Kubota LA1944 loader is
compatible with a 84" (2130 mm) standard material bucket with a heaped
capacity of 31.2 cu.ft (0.75 m3).
Tractor Models |
Kubota M6S-111 |
Front Tires |
13.6R24 |
Rear Tires |
18.4R34 |
Hydraulic System Flow, gpm (lpm) |
17.2 (65.0) |
Loader Model |
Kubota LA1944 NSL |
Leveling System |
Non Self Leveling |
Weight, lbs (kg) |
1800 (820) |
Width, in (mm) |
84 (2130) |
Struck Capacity, cu.ft (m3) |
19.3 (0.55) |
Heaped Capacity, cu.ft (m3) |
31.2 (0.75) |
Weight, lbs (kg) |
600 (273) |
Maximum lift height to bucket pivot pin, in (mm) |
145.7 (3700) |
Maximum lift height under level bucket, in (mm) |
136.6 (3470) |
Clearance with bucket dumped 45 deg, lowest point of cutting edge, in (mm) |
114.2 (2900) |
Reach at maximum lift height, bucket dump at 45 deg, in (mm) |
24.8 (630) |
Reach with bucket on ground level, in (mm) |
89.4 (2270) |
Maximum dump angle, loader fully raised, degrees |
50 |
Maximum rollback angle, bucket at ground, degrees |
41 |
Digging depth, in (mm) |
2.4 (60) |
Lift Capacity to maximum height at bucket pivot pin, lbs (kg) |
4178 (1895) |
Lift Capacity to max. height at 0.8m forward of bucket pivot pin, lbs (kg) |
2668 (1210) |
Lift Capacity to 1.5m height at bucket pivot pin, lbs (kg) |
4685 (2125) |
Lift Capacity to 1.5m height at 0.8m forward of pivot pin, lbs (kg) |
3472 (1575) |
Boom Breakout force at pivot pin, lbs (kg) |
5589 (2535) |
Boom Breakout force at 0.8m forward of bucket pivot pin, lbs (kg) |
3864 (1753) |
Bucket rollback force at max. height, 0.8m forward of pivot pin, lbs (kg) |
3084 (1399) |
Bucket rollback force at ground, 0.8m forward of pivot pin, lbs (kg) |
5802 (2632) |
