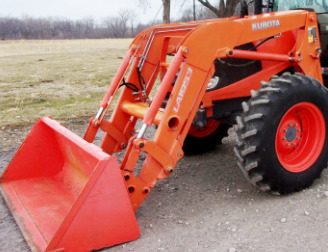

Kubota LA1953 Front End Loader

The Kubota LA1953 loader is compatible with Kubota M100X, M110X tractors. The front end loader has double acting boom and bucket hydraulic cylinders. The Kubota LA1953 loader has a lift capacity (at pivot pin) of 4178 lbs (1895 kg) to a maximum height of 145.7" (3700 mm), and breakout force (bucket on ground) of 5589 lbs (2540 kg). A full dump clearance with a 52-degree maximum dump angle is 112.6" (2860 mm).

The rated cycle times are 4.6 seconds raising to maximum height, and 2.1 seconds full bucket dumping. The Kubota LA1953 loader is equipped with a 84" (2130 mm) standard material bucket with a rated capacity of 0.64 m3 (22.6 cu.ft), and 96" (2430 mm) heavy-duty material bucket with a rated capacity of 0.73 m3 (25.7 cu.ft).

Compatible Tractors
Tractor models Kubota M100X, M110X
Front tires 13.6R24
Rear tires 18.4R34
Rated flow, lpm (gpm) 68.5 (18.0)

Loader
Loader Model Kubota LA1953
Leveling System Non Self Leveling
Net Weight (approximate), lb (kg) 2110 (960)

84" Standard Material Bucket
Width, in (mm) 84 (2130)
Struck Capacity, cu.ft (m3) 17.9 (0.51)
Heaped Capacity, cu.ft (m3) 22.6 (0.64)
Weight, lbs (kg) 470 (215)

96" Standard Material Bucket
Width, in (mm) 96 (2430)
Struck Capacity, cu.ft (m3) 21.4 (0.61)
Heaped Capacity, cu.ft (m3) 25.7 (0.73)
Weight, lbs (kg) 600 (270)

Loader Dimensions
Maximum Lift Height at Pivot pin (Height position), in (mm) 145.7 (3700)
Maximum Lift Height at Pivot pin (Power position), in (mm) 132.7 (3370)
Maximum Lift Height Under Level Bucket (Height position), in (mm) 136.6 (3470)
Maximum Lift Height Under Level Bucket (Power position), in (mm) 124.4 (3160)
Clearance with Bucket Dumped (Height position), in (mm) 112.6 (2860)
Clearance with Bucket Dumped (Power position), in (mm) 98.0 (2490)
Reach At Maximum Lift Height (Height position), in (mm) 21.8 (553)
Reach At Maximum Lift Height (Power position), in (mm) 36.7 (932)
Maximum Dump Angle (Height position), degrees 52
Maximum Dump Angle (Power position), degrees 63
Reach with Bucket on Ground, in (mm) 87.8 (2230)
Maximum Rollback Angle, degrees 40
Digging Depth (Height position), in (mm) 2.4 (60)
Digging Depth (Power position), in (mm) 2.6 (65)
Overall Height in Carry Position, in (mm) 66.9 (1700)

Operating Data
Lift Capacity to Maximum Height at Pivot Pin (Height position), lbs (kg) 4178 (1895)
Lift Capacity to Maximum Height at Pivot Pin (Power position), lbs (kg) 4299 (1950)
Lift Capacity to Maximum Height at 31.5" (0.8m) forward of Pivot Pin (Height position), lbs (kg) 2668 (1210)
Lift Capacity to Maximum Height at 31.5" (0.8m) forward of Pivot Pin (Power position), lbs (kg) 2976 (1350)
Lift Capacity to 59" (1.5m) Height at Pivot Pin (Height position), lbs (kg) 4685 (2125)
Lift Capacity to 59" (1.5m) Height at Pivot Pin (Power position), lbs (kg) 5247 (2380)
Lift Capacity to 59" (1.5m) Height at 31.5" (0.8m) forward of Pivot Pin (Height position), lbs (kg) 3472 (1575)
Lift Capacity to 59" (1.5m) Height at 31.5" (0.8m) forward of Pivot Pin (Power position), lbs (kg) 4057 (1840)
Breakout Force at Pivot Pin (Height position), Ibs (kg) 5589 (2540)
Breakout Force at Pivot Pin (Power position), Ibs (kg) 6576 (2990)
Breakout Force at 31.5" (0.8m) forward of Pivot Pin (Height position), Ibs (kg) 3864 (1756)
Breakout Force at 31.5" (0.8m) forward of Pivot Pin (Power position), Ibs (kg) 4991 (2265)
Bucket Rollback Force at Maximum Height (Height position), Ibs (kg) 3084 (1400)
Bucket Rollback Force at Maximum Height (Power position), Ibs (kg) 3615 (1645)
Bucket Rollback Force at Ground Level, Ibs (kg) 5802 (2635)

Cycle Times
Raising Time, second 4,6
Lowering time, second 3,3
Bucket Rollback Time, second 2,5
Bucket Dumping Time, second 2,1
