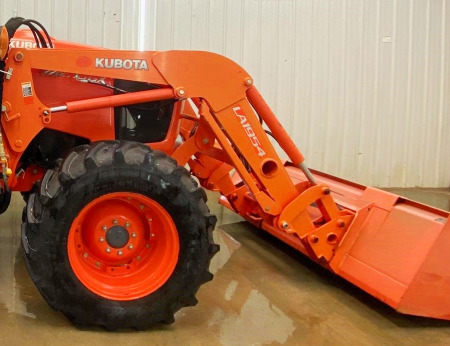

Kubota LA1954 Front End Loader

The Kubota LA1954 front end loader is used for Kubota M100GX, M110GX tractors. The loader has double acting hydraulic boom and bucket cylinders. The loader has a lifting capacity (at pivot pin) of 4180 lbs (1895 kg) to full height of 145.6" (3700 mm) using height position, and bucket's breakout force of 6575 lbs (2990 kg) using power position. The bucket dump clearance with a 52-degree max dump angle is 112.6" (2860 mm) using height position.

The estimated cycle times are 3.8 seconds lifting to full height and 2.1 seconds maximum bucket dumping. The Kubota LA1954 loader is equipped with the following buckets: a 84" (2130 mm) standard material bucket with heaped capacity of 22.6 cu.ft (0.64 cu.m), or 96" (2435 mm) standard material bucket with heaped capacity of 26.5 cu.ft (0.75 cu.m).

Compatible Tractors
Tractor Model Kubota M100GX, M110GX
Front Tire Size 13.6R24
Rear Tire Size 18.4R34
Pump Flow, gpm (lpm) 18.0 (68.0)
Hydraulic Pressure, bar (psi) 207 (3000)

Loader
Loader Model Kubota LA1954
Leveling System Non self leveling
Lift Cylinder Bore, in (mm) 2.76 (70)
Lift Cylinder Stroke, in (mm) 23.9 (606)
Bucket Cylinder Bore, in (mm) 2.76 (70)
Bucket Cylinder Stroke, in (mm) 20.3 (517)
Weight, lbs (kg) 1980 (900)

84" Standard Material Bucket
Bucket Type Quick attach
Width, in (mm) 84 (2130)
Depth, in (mm) 25.6 (650)
Height, in (mm) 26.2 (665)
Struck Capacity, cu.ft (m3) 18.4 (0.52)
Heaped Capacity, cu.ft (m3) 22.6 (0.64)
Weight, lbs (kg) 518 (235)

96" Standard Material Bucket
Bucket Type Quick attach
Width, in (mm) 96 (2435)
Depth, in (mm) 29.5 (750)
Height, in (mm) 26.2 (665)
Struck Capacity, cu.ft (m3) 23.3 (0.66)
Heaped Capacity, cu.ft (m3) 26.5 (0.75)
Weight, lbs (kg) 606 (275)


Loader Dimensions
Maximum Lift Height at Pin (Height Position), in (mm) 145.6 (3700)
Maximum Lift Height at Pin (Power Position), in (mm) 132.7 (3370)
Clearance with Bucket Dumped (Height Position), in (mm) 112.6 (2860)
Clearance with Bucket Dumped (Power Position), in (mm) 98 (2490)
Reach at Maximum Height (Height Position), in (mm) 19.3 (490)
Reach at Maximum Height (Power Position), in (mm) 34 (864)
Maximum Dump Angle (Height Position), deg 52
Maximum Dump Angle (Power Position), deg 63
Reach with Bucket on Ground, in (mm) 87.8 (2230)
Bucket Rollback Angle, deg 40
Digging Depth (Height Position), in (mm) 2.4 (60)
Digging Depth (Power Position), in (mm) 2.6 (65)
Overall Height in Carry Position, in (mm) 66.9 (1700)

Operating Data
Lift Capacity to Full Height at Pin (Height Position), lbs (kg) 4180 (1895)
Lift Capacity to Full Height at Pin (Power Position), lbs (kg) 4300 (1950)
Lift Capacity to Full Height at 31.5" (0.8m) ahead of Pin (Height Position), lbs (kg) 2670 (1210)
Lift Capacity to Full Height at 31.5" (0.8m) ahead of Pin (Power Position), lbs (kg) 2980 (1350)
Breakout Force at Pin (Height Position), lbs (kg) 5590 (2540)
Breakout Force at Pin (Power Position), lbs (kg) 6575 (2990)
Breakout Force at 31.5" (0.8m) ahead of Pin (Height Position), lbs (kg) 3865 (1755)
Breakout Force at 31.5" (0.8m) ahead of Pin (Power Position), lbs (kg) 4990 (2270)

Cycle Times
Raising Time, sec 3.8
Lowering Time, sec 3.3
Bucket Dumping Time 2.1
Bucket Rollback Time 2.5
