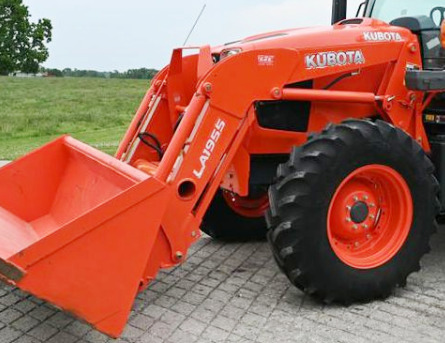

Kubota LA1955 Front End Loader

The Kubota LA1955 non self leveling front end loader fits Kubota M6101, M6111 tractors. The loader has double acting hydraulic bucket and lifting cylinders. The loader has a lifting capacity (at pivot pin) of 4299 lbs (1950 kg) to a maximum height of 132.7" (3370 mm) using power position, and breakout force (bucket on ground) of 5589 lbs (2540 kg) using height position.

The clearance with bucket dumped is 98" (2490 mm) at maximum dump angle of 63 degrees (power position). The boom raising time is 3.8 seconds from ground level to full height, and bucket dump time is 2.1 seconds. The Kubota LA1955 loader is compatible with the following buckets: a 84" (2130 mm) standard material bucket with heaped capacity of 22.6 cu.ft (0.64 cu.m), or 96" (2430 mm) standard material bucket with heaped capacity of 25.7 cu.ft (0.73 cu.m).

Compatible Tractors
Tractor models Kubota M6101, M6111
Front tires 13.6R24
Rear tires 18.4R34
Pump Flow, gpm (lpm) 18.5 (70.0)
Hydraulic Pressure, bar (psi) 207 (3000)

Loader
Loader Model Kubota LA1955
Leveling System Non self leveling
Weight, lbs (kg) 2050 (930)

84" Standard Material Bucket
Width, in (mm) 84 (2130)
Struck Capacity, cu.ft (m3) 17.9 (0.51)
Heaped Capacity, cu.ft (m3) 22.6 (0.64)
Weight, lbs (kg) 470 (215)

96" Standard Material Bucket
Width, in (mm) 96 (2430)
Struck Capacity, cu.ft (m3) 21.4 (0.61)
Heaped Capacity, cu.ft (m3) 25.7 (0.73)
Weight, lbs (kg) 600 (270)


Loader Dimensions
Maximum Lift Height at Pivot Pin (Height position), in (mm) 145.7 (3700)
Maximum Lift Height at Pivot Pin (Power position), in (mm) 132.7 (3370)
Maximum Lift Height Under Level Bucket (Height position), in (mm) 136.6 (3470)
Maximum Lift Height Under Level Bucket (Power position), in (mm) 124.4 (3160)
Clearance with Bucket Dumped (Height position), in (mm) 112.6 (2860)
Clearance with Bucket Dumped (Power position), in (mm) 98.0 (2490)
Reach At Maximum Lift Height (Height position), in (mm) 19.3 (489)
Reach At Maximum Lift Height (Power position), in (mm) 34.0 (864)
Maximum Dump Angle (Height position), degrees 52
Maximum Dump Angle (Power position), degrees 63
Reach with Bucket on Ground, in (mm) 87.8 (2230)
Maximum Rollback Angle, degrees 40
Digging Depth (Height position), in (mm) 2.4 (60)
Digging Depth (Power position), in (mm) 2.6 (65)
Overall Height in Carry Position, in (mm) 66.9 (1700)

Operating Data
Lift Capacity to Maximum Height at Pivot Pin (Height position), lbs (kg) 4178 (1895)
Lift Capacity to Maximum Height at Pivot Pin (Power position), lbs (kg) 4299 (1950)
Lift Capacity to Maximum Height at 31.5" (0.8m) forward of Pivot Pin (Height position), lbs (kg) 2668 (1210)
Lift Capacity to Maximum Height at 31.5" (0.8m) forward of Pivot Pin (Power position), lbs (kg) 2976 (1350)
Lift Capacity to 59" (1.5m) Height at Pivot Pin (Height position), lbs (kg) 4685 (2125)
Lift Capacity to 59" (1.5m) Height at Pivot Pin (Power position), lbs (kg) 5247 (2380)
Lift Capacity to 59" (1.5m) Height at 31.5" (0.8m) forward of Pivot Pin (Height position), lbs (kg) 3472 (1575)
Lift Capacity to 59" (1.5m) Height at 31.5" (0.8m) forward of Pivot Pin (Power position), lbs (kg) 4057 (1840)
Breakout Force at Pivot Pin (Height position), Ibs (kg) 5589 (2540)
Breakout Force at Pivot Pin (Power position), Ibs (kg) 6576 (2990)
Breakout Force at 31.5" (0.8m) forward of Pivot Pin (Height position), Ibs (kg) 3864 (1755)
Breakout Force at 31.5" (0.8m) forward of Pivot Pin (Power position), Ibs (kg) 4991 (2268)
Bucket Rollback Force at Maximum Height (Height position), Ibs (kg) 3084 (1400)
Bucket Rollback Force at Maximum Height (Power position), Ibs (kg) 3615 (1643)
Bucket Rollback Force at Ground Level, Ibs (kg) 5802 (2637)

Cycle Times
Raising Time, second 3,8
Lowering time, second 3,3
Bucket Rollback Time, second 2,5
Bucket Dumping Time, second 2,1
