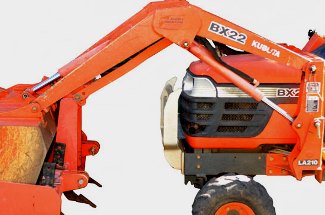

Kubota LA210 Front-End Loader
The
Kubota LA210 front-end loader is designed for Kubota BX1800, BX2200, and BX22
tractors. The front end loader has double acting hydraulic bucket and lift
cylinders. The Kubota LA210 loader has a lift capacity (at bucket pin) of 463
lbs (210 kg) to a max height of 71.3" (1810 mm), and breakout force (bucket on
ground) of 944 lbs (430 kg). The clearance with a bucket dumped is 51.2" (1300
mm) at maximum dump angle of 45 degrees.
The estimated cycle times are 2.9 sec lifting to maximum height, and 1.4 sec maximum bucket dumping. The Kubota LA210 loader is compatible with a 48" (1220 mm) standard material bucket with a heaped capacity of 0.17 m3 (6 cu.ft).
| Compatible Tractor Models |
Tractor Models .................... Kubota BX1800, BX2200, BX22
Front Tyre Size .................... 18x18.50-8
Rear Tyre Size .................... 26x12.00-12
Hydraulic Flow, gpm (lpm) .................... 5.5 (21.0)
Maximum Pressure, psi (bar) .................... 1850 (127)
| Loader |
Loader Model .................... Kubota LA210
Lift Cylinder Bore, in (mm) .................... 1.5 (38)
Lift Cylinder Stroke, in (mm) .................... 12.8 (325)
Bucket Cylinder Bore, in (mm) .................... 2.25 (57)
Bucket Cylinder Stroke, in (mm) .................... 8.0 (203)
Weight, lbs (kg) .................... 430 (195)
| Bucket |
Width, in (mm) .................... 48 (1220)
Depth, in (mm) .................... 19.5 (495)
Height, in (mm) .................... 18.3 (465)
Bucket Capacity (Struck), cu.ft (m3) .................... 4.9 (0.14)
Bucket Capacity (Heaped), cu.ft (m3) .................... 6.0 (0.17)
Weight, lbs (kg) .................... 132 (60)
| Loader Dimensions |
Maximum Lift Height at Pivot Pin, in (mm) .................... 71.3 (1810)
Clearance with Bucket Dumped, in (mm) .................... 51.2 (1300)
Digging Depth, in (mm) .................... 4.7 (120)
Reach at Maximum Lift Height, in (mm) .................... 27 (685)
Reach with Bucket on Ground, in (mm) .................... 51.6 (1310)
Maximum Dump Angle, deg .................... 45
Maximum Rollback Angle, deg .................... 25
Overall Height in Carrying Position, in (mm) .................... 42.1 (1070)
| Operating Specifications |
Lift Capacity to Full Height at Pivot Pin, lbs (kg) .................... 463 (210)
Breakout Force at Pivot Pin, lbs (kg) .................... 944 (430)
| Cycle Times |
Loader Raise Time, sec .................... 2.9
Loader Lower Time, sec .................... 2.8
Bucket Dump Time, sec .................... 1.4
Bucket Rollback Time, sec .................... 1.5
