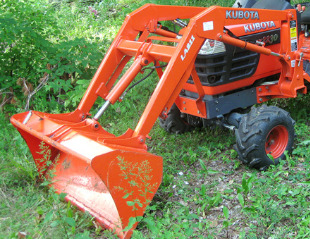

Kubota LA211 Front End Loader

The Kubota LA211 loader is designed to fit Kubota BX1800, BX1830 tractors. The LA211 loader is equipped with double acting hydraulic lift and bucket cylinders. The 4 foot standard material bucket has a heaped capacity of 4.9 cu.ft (0.14 cu.m). The light material bucket has a rated capacity of 6.1 cu.ft (0.17 cu.m) and width of 48 inches.

The Kubota LA211 front end loader has a lifting capacity (at pivot pin) of 460 lbs (210 kg) to full height of 71.3 in (1810 mm), and boom breakout force of 950 lbs (430 kg).

A full dump clearance with a 45-degree maximum dump angle is 51.2 in (1300 mm). The raising cycle time is 2.9 seconds from ground line to maximum height, and bucket dump time is 2.5 seconds.

Compatible Tractors
Tractor Models Kubota BX1800, BX1830
Front Tires 18x8.50-8
Rear Tires 26x12.00-12
Hydraulic System Flow, gpm (lpm) 5.5 (20.8)

Standard Material Bucket
Width, in (mm) 48 (1220)
Depth, in (mm) 17.9 (455)
Height, in (mm) 17.5 (445)
Length, in (mm) 19.6 (498)
Capacity (Struck), cu.ft (m3) 4.2 (0.12)
Capacity (Heaped), cu.ft (m3) 4.9 (0.14)
Weight, lbs (kg) 125 (56)

Light Material Bucket
Width, in (mm) 48 (1220)
Depth, in (mm) 19.5 (495)
Height, in (mm) 18.3 (465)
Length, in (mm) 21.2 (538)
Capacity (Struck), cu.ft (m3) 4.9 (0.14)
Capacity (Heaped), cu.ft (m3) 6.1 (0.17)
Weight, lbs (kg) 135 (60)


Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 71.3 (1810)
Clearance with Bucket Dumped, in (mm) 51.2 (1300)
Reach at Maximum Lift Height, in (mm) 29.9 (750)
Maximum Dump Angle, degrees 45
Digging Depth, in (mm) 3.9 (100)
Maximum Rollback Angle, degrees 25

Operating Data
Lift Capacity to Max. Height at Pivot Point, lbs (kg) 460 (210)
Lift Capacity to Max. Height at 0.5m (19.5") from Bucket Pivot Point, lbs (kg) 320 (145)
Breakout Force at Bucket Pivot Point, lbs (kg) 950 (430)
Breakout Force at 0.5m (19.5") from Bucket Pivot Point, lbs (kg) 650 (295)

Cycle Times
Loader Raise, sec. 2,9
Loader Lower, sec. 2,9
Bucket Dump, sec. 2,5
Bucket Rollback, sec. 2,8
