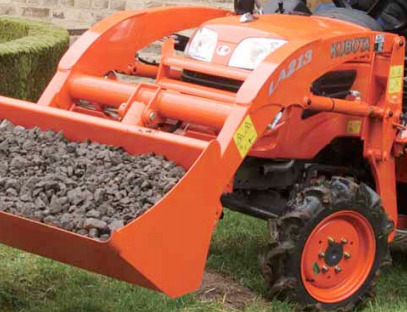

Kubota LA213 Front End Loader
The
Kubota LA213 non self leveling loader fits Kubota B1121, B1161, B1181, B1241
tractors. The loader hydraulic system includes double-acting hydraulic bucket
and boom cylinders. The loader’s maximum lift height is 75.6" (1920 mm) at pin,
and bucket dump clearance is 56.9" (1445 mm).
The lift capacity is 665 lbs (302 kg) to full height at pin, and boom
breakout force is 1470 lbs (668 kg). The raising cycle time is 3.6 sec
from ground level to full height, and bucket dumping time is 1.5
seconds. The Kubota LA213 front end loader is compatible with a 42"
(1065 mm) quick attach standard material bucket with a heaped capacity
of 5.3 cu.ft (0.15 m3).
| Tractor Model |
Kubota B1121, B1161, B1181, B1241 |
| Front Tire Size |
5.00x12 |
| Rear Tire Size |
8.00x16 |
| Pump Flow, gpm (lpm) |
4.0 (15.2) |
| Hydraulic Pressure, bar (psi) |
140 (2050) |
| Loader Model |
Kubota LA213 |
| Leveling System |
Non self leveling |
| Weight, lbs (kg) |
460 (209) |
| Bucket Type |
Quick attach |
| Width, in (mm) |
42 (1065) |
| Struck Capacity, cu.ft (m3) |
4.2 (0.12) |
| Heaped Capacity, cu.ft (m3) |
5.3 (0.15) |
| Weight, lbs (kg) |
110 (50) |
| Maximum Lift Height at Pin, in (mm) |
75.6 (1920) |
| Clearance with Bucket Dumped, in (mm) |
56.9 (1445) |
| Reach at Maximum Height, in (mm) |
32.1 (815) |
| Maximum Dump Angle, deg |
44 |
| Reach with Bucket on Ground, in (mm) |
55.7 (1415) |
| Bucket Rollback Angle, deg |
24 |
| Digging Depth, in (mm) |
4.3 (110) |
| Overall Height in Carry Position, in (mm) |
42.1 (1070) |
| Lift Capacity to Full Height at Pin, lbs (kg) |
665 (302) |
| Lift Capacity to Full Height at 19.7" (0.5m) ahead of Pin, lbs (kg) |
458 (208) |
| Breakout Force at Pin, lbs (kg) |
1470 (668) |
| Breakout Force at 19.7" (0.5m) ahead of Pin, lbs (kg) |
1012 (460) |
| Raising Time, sec |
3.6 |
| Lowering Time, sec |
2.7 |
| Bucket Dumping Time |
1.5 |
| Bucket Rollback Time |
2.5 |
