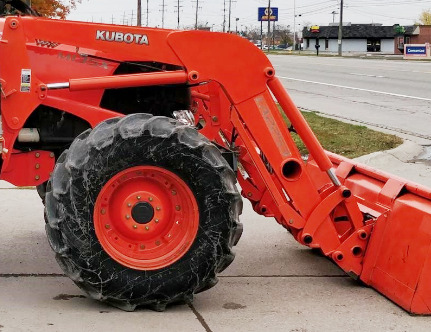

Kubota LA2253 Front End Loader

The Kubota LA2253 non self leveling loader is compatible with Kubota M126X, M135X tractors. The loader hydraulic system includes double-acting hydraulic bucket and boom cylinders. The loader has a lift capacity (at bucket pin) of 4711 lbs (2137 kg) to maximum height of 161.4 inches (4099 mm), and breakout force of 6585 lbs (2995 kg).

The clearance with a bucket dumped is 129.5 inches (3290 mm) at max dump angle of 50 degrees. The rated cycle times are 5.3 seconds lifting to full height and 2.4 seconds maximum bucket dumping. Compatible buckets for Kubota LA2253 front-end loader: a 84" (2130 mm) standard material bucket with heaped capacity of 22.6 cu.ft (0.64 cu.m), or 96" (2430 mm) standard material bucket with heaped capacity of 25.7 cu.ft (0.73 cu.m).

Compatible Tractors
Tractor models Kubota M126X, M135X
Front tires 14.9R24
Rear tires 18.4R38
Rated flow, lpm (gpm) 77.0 (20.0)
Hydraulic Pressure, bar (psi) 207 (3000)

Loader
Loader Model Kubota LA2253
Leveling System Non self leveling
Weight, lbs (kg) 2250 (1020)

84" Standard Material Bucket
Width, in (mm) 84 (2130)
Struck Capacity, cu.ft (m3) 17.9 (0.51)
Heaped Capacity, cu.ft (m3) 22.6 (0.64)
Weight, lbs (kg) 470 (215)

96" Standard Material Bucket
Width, in (mm) 96 (2430)
Struck Capacity, cu.ft (m3) 21.4 (0.61)
Heaped Capacity, cu.ft (m3) 25.7 (0.73)
Weight, lbs (kg) 600 (270)


Loader Dimensions
Maximum Lift Height at Pivot Pin (Height position), in (mm) 161.4 (4099)
Maximum Lift Height at Pivot Pin (Power position), in (mm) 148.2 (3764)
Maximum Lift Height Under Level Bucket (Height position), in (mm) 152.0 (3862)
Maximum Lift Height Under Level Bucket (Power position), in (mm) 138.9 (3527)
Clearance with Bucket Dumped (Height position), in (mm) 129.5 (3290)
Clearance with Bucket Dumped (Power position), in (mm) 116.4 (2956)
Reach At Maximum Lift Height (Height position), in (mm) 23.2 (589)
Reach At Maximum Lift Height (Power position), in (mm) 38.7 (984)
Maximum Dump Angle (Height position), degrees 50
Maximum Dump Angle (Power position), degrees 60
Reach with Bucket on Ground, in (mm) 91.9 (2334)
Maximum Rollback Angle, degrees 40
Digging Depth (Height position), in (mm) 5.2 (131)
Digging Depth (Power position), in (mm) 5.2 (133)
Overall Height in Carry Position, in (mm) 74.0 (1880)

Operating Data
Lift Capacity to Maximum Height at Pivot Pin (Height position), lbs (kg) 4711 (2137)
Lift Capacity to Maximum Height at Pivot Pin (Power position), lbs (kg) 4877 (2212)
Lift Capacity to Maximum Height at 31.5" (0.8m) forward of Pivot Pin (Height position), lbs (kg) 3135 (1422)
Lift Capacity to Maximum Height at 31.5" (0.8m) forward of Pivot Pin (Power position), lbs (kg) 3477 (1577)
Lift Capacity to 59" (1.5m) Height at Pivot Pin (Height position), lbs (kg) 5591 (2536)
Lift Capacity to 59" (1.5m) Height at Pivot Pin (Power position), lbs (kg) 6180 (2803)
Lift Capacity to 59" (1.5m) Height at 31.5" (0.8m) forward of Pivot Pin (Height position), lbs (kg) 4337 (1967)
Lift Capacity to 59" (1.5m) Height at 31.5" (0.8m) forward of Pivot Pin (Power position), lbs (kg) 4791 (2173)
Breakout Force at Pivot Pin (Height position), Ibs (kg) 6585 (2995)
Breakout Force at Pivot Pin (Power position), Ibs (kg) 7639 (3472)
Breakout Force at 31.5" (0.8m) forward of Pivot Pin (Height position), Ibs (kg) 4879 (2217)
Breakout Force at 31.5" (0.8m) forward of Pivot Pin (Power position), Ibs (kg) 5657 (2570)
Bucket Rollback Force at Maximum Height (Height position), Ibs (kg) 3965 (1800)
Bucket Rollback Force at Maximum Height (Power position), Ibs (kg) 4601 (2090)
Bucket Rollback Force at Ground Level, Ibs (kg) 6398 (2908)

Cycle Times
Raising Time, second 5,3
Lowering time, second 4,1
Bucket Rollback Time, second 3,1
Bucket Dumping Time, second 2,4
