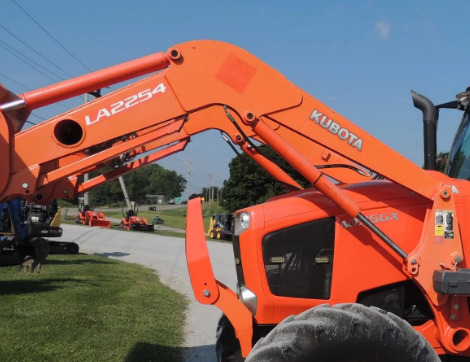

Kubota LA2254 Front End Loader

The Kubota LA2254 non self leveling front end loader is designed to fit Kubota M126GX, M135GX tractors. The loader has double acting hydraulic bucket and lifting cylinders. The loader has a lifting capacity (at pivot pin) of 4877 lbs (2212 kg) to full height of 148.2" (3765 mm) using power position, and breakout force (bucket on ground) of 7639 lbs (3472 kg). A full dump clearance with a 60-degree maximum dump angle is 116.4" (2956 mm).

The estimated cycle times are 4.5 seconds raising to full height and 2.4 seconds maximum bucket dumping. The Kubota LA2254 loader is equipped with the following buckets: a 84" (2130 mm) standard material bucket with heaped capacity of 27.9 cu.ft (0.79 cu.m), or 96" (2430 mm) standard material bucket with heaped capacity of 34.6 cu.ft (0.98 cu.m).

Compatible Tractors
Tractor Model Kubota M126GX, M135GX
Front Tire Size 14.9R24
Rear Tire Size 18.4R38
Pump Flow, gpm (lpm) 20.3 (77.0)
Hydraulic Pressure, bar (psi) 207 (3000)

Loader
Loader Model Kubota LA2254
Leveling System Non self leveling
Lift Cylinder Bore, in (mm) 2.95 (75)
Bucket Cylinder Bore, in (mm) 2.95 (75)
Lift Cylinder Stroke, in (mm) 26.8 (680)
Bucket Cylinder Stroke, in (mm) 24 (610)
Weight, lbs (kg) 2360 (1070)

84" Standard Material Bucket
Bucket Type Quick attach
Width, in (mm) 84 (2130)
Depth, in (mm) 29.5 (750)
Height, in (mm) 28.2 (715)
Struck Capacity, cu.ft (m3) 22.3 (0.63)
Heaped Capacity, cu.ft (m3) 27.9 (0.79)
Weight, lbs (kg) 562 (255)

96" Standard Material Bucket
Bucket Type Quick attach
Width, in (mm) 96 (2435)
Depth, in (mm) 31.5 (800)
Height, in (mm) 30.1 (765)
Struck Capacity, cu.ft (m3) 28.3 (0.80)
Heaped Capacity, cu.ft (m3) 34.6 (0.98)
Weight, lbs (kg) 697 (316)


Loader Dimensions
Maximum Lift Height at Pin (Height Position), in (mm) 161.4 (4100)
Maximum Lift Height at Pin (Power Position), in (mm) 148.2 (3765)
Clearance with Bucket Dumped (Height Position), in (mm) 129.5 (3290)
Clearance with Bucket Dumped (Power Position), in (mm) 116.4 (2956)
Reach at Maximum Height (Height Position), in (mm) 30 (760)
Reach at Maximum Height (Power Position), in (mm) 45.5 (1157)
Maximum Dump Angle (Height Position), deg 50
Maximum Dump Angle (Power Position), deg 60
Reach with Bucket on Ground, in (mm) 95.8 (2434)
Bucket Rollback Angle, deg 40
Digging Depth, in (mm) 5.2 (130)
Overall Height in Carry Position, in (mm) 74 (1880)

Operating Data
Lift Capacity to Full Height at Pin (Height Position), lbs (kg) 4711 (2137)
Lift Capacity to Full Height at Pin (Power Position), lbs (kg) 4877 (2212)
Lift Capacity to Full Height at 31.5" (0.8m) ahead of Pin (Height Position), lbs (kg) 3135 (1422)
Lift Capacity to Full Height at 31.5" (0.8m) ahead of Pin (Power Position), lbs (kg) 3477 (1577)
Breakout Force at Pin (Height Position), lbs (kg) 6585 (2994)
Breakout Force at Pin (Power Position), lbs (kg) 7639 (3472)
Breakout Force at 31.5" (0.8m) ahead of Pin (Height Position), lbs (kg) 4879 (2218)
Breakout Force at 31.5" (0.8m) ahead of Pin (Power Position), lbs (kg) 5657 (2572)

Cycle Times
Raising Time, sec 4.5
Lowering Time, sec 3.9
Bucket Dumping Time 2.4
Bucket Rollback Time 3.0
