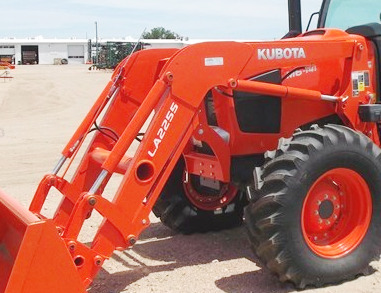

Kubota LA2255 Front End Loader

The Kubota LA2255 non self-leveling loader is designed to fit Kubota M6131, M6141 tractors. The loader hydraulic system includes a double-acting hydraulic lift and bucket cylinders. The loader’s maximum lift height is 161.4" (4099 mm) at pin and bucket dump clearance is 129.5" (3290 mm) using height position. The lift capacity is 4877 lbs (2212 kg) at maximum height (pivot pin), and bucket's breakout force is 7639 lbs (3472 kg) using power position.

The boom raising time is 4.5 sec from ground line to full height, and bucket dump time is 2.4 sec. The Kubota LA2255 front-end loader is compatible with the following buckets: a 84" (2130 mm) standard material bucket with heaped capacity of 22.6 cu.ft (0.64 cu.m), or 96" (2430 mm) standard material bucket with heaped capacity of 25.7 cu.ft (0.73 cu.m).

Compatible Tractors
Tractor models Kubota M6131, M6141
Front tires 14.9R24
Rear tires 18.4R38
Rated flow, lpm (gpm) 77.0 (20.0)
Hydraulic Pressure, bar (psi) 207 (3000)

Loader
Loader Model Kubota LA2255
Leveling System Non self leveling
Weight, lbs (kg) 2300 (1045)

84" Standard Material Bucket
Width, in (mm) 84 (2130)
Struck Capacity, cu.ft (m3) 17.9 (0.51)
Heaped Capacity, cu.ft (m3) 22.6 (0.64)
Weight, lbs (kg) 470 (215)

96" Standard Material Bucket
Width, in (mm) 96 (2430)
Struck Capacity, cu.ft (m3) 21.4 (0.61)
Heaped Capacity, cu.ft (m3) 25.7 (0.73)
Weight, lbs (kg) 600 (270)


Loader Dimensions
Maximum Lift Height at Pivot Pin (Height position), in (mm) 161.4 (4099)
Maximum Lift Height at Pivot Pin (Power position), in (mm) 148.2 (3764)
Maximum Lift Height Under Level Bucket (Height position), in (mm) 152.0 (3862)
Maximum Lift Height Under Level Bucket (Power position), in (mm) 138.9 (3527)
Clearance with Bucket Dumped (Height position), in (mm) 129.5 (3290)
Clearance with Bucket Dumped (Power position), in (mm) 116.4 (2956)
Reach At Maximum Lift Height (Height position), in (mm) 30.0 (761)
Reach At Maximum Lift Height (Power position), in (mm) 45.5 (1157)
Maximum Dump Angle (Height position), degrees 50
Maximum Dump Angle (Power position), degrees 60
Reach with Bucket on Ground, in (mm) 91.9 (2334)
Maximum Rollback Angle, degrees 40
Digging Depth (Height position), in (mm) 5.2 (131)
Digging Depth (Power position), in (mm) 5.2 (133)
Overall Height in Carry Position, in (mm) 74.0 (1880)

Operating Data
Lift Capacity to Maximum Height at Pivot Pin (Height position), lbs (kg) 4711 (2137)
Lift Capacity to Maximum Height at Pivot Pin (Power position), lbs (kg) 4877 (2212)
Lift Capacity to Maximum Height at 31.5" (0.8m) forward of Pivot Pin (Height position), lbs (kg) 3135 (1422)
Lift Capacity to Maximum Height at 31.5" (0.8m) forward of Pivot Pin (Power position), lbs (kg) 3477 (1577)
Lift Capacity to 59" (1.5m) Height at Pivot Pin (Height position), lbs (kg) 5591 (2536)
Lift Capacity to 59" (1.5m) Height at Pivot Pin (Power position), lbs (kg) 6180 (2803)
Lift Capacity to 59" (1.5m) Height at 31.5" (0.8m) forward of Pivot Pin (Height position), lbs (kg) 4337 (1967)
Lift Capacity to 59" (1.5m) Height at 31.5" (0.8m) forward of Pivot Pin (Power position), lbs (kg) 4791 (2173)
Breakout Force at Pivot Pin (Height position), Ibs (kg) 6585 (2995)
Breakout Force at Pivot Pin (Power position), Ibs (kg) 7639 (3472)
Breakout Force at 31.5" (0.8m) forward of Pivot Pin (Height position), Ibs (kg) 4879 (2217)
Breakout Force at 31.5" (0.8m) forward of Pivot Pin (Power position), Ibs (kg) 5657 (2570)
Bucket Rollback Force at Maximum Height (Height position), Ibs (kg) 3965 (1800)
Bucket Rollback Force at Maximum Height (Power position), Ibs (kg) 4601 (2090)
Bucket Rollback Force at Ground Level, Ibs (kg) 6398 (2908)

Cycle Times
Raising Time, second 4,5
Lowering time, second 3,9
Bucket Rollback Time, second 3,1
Bucket Dumping Time, second 2,4
