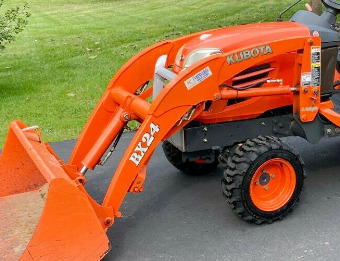

Kubota LA240 Front End Loader
The
Kubota LA240 front-end loader is used for Kubota BX24, BX25 TLB tractors. The
front end loader has double acting hydraulic boom and bucket cylinders. The
loader has a max lift height of 71.3" (1810 mm) at pin and bucket dump clearance
of 52.4" (1330 mm).
The lifting capacity is rated at 750 lbs (340 kg) to full height, and
bucket's breakout force is 1415 lbs (643 kg). The rated cycle times are
3.5 seconds lifting to full height, and 1.7 seconds to full bucket dump.
The Kubota LA240 loader is equipped with a 48" (1220 mm) pin-on standard
material bucket with a heaped capacity of 6.1 cu.ft (0.17 m3).
| Tractor Model |
Kubota BX24, BX25 TLB |
| Front Tire Size |
18x8.50-10 |
| Rear Tire Size |
26x12.0-12 |
| Pump Flow, gpm (lpm) |
6.2 (23.5) |
| Hydraulic Pressure, bar (psi) |
141 (2000) |
| Loader Model |
Kubota LA240 |
| Leveling System |
Non self leveling |
| Lift Cylinder Size (Rod/Stroke), in (mm) |
25x325 (1.0x12.8) |
| Bucket Cylinder Size (Rod/Stroke), in (mm) |
30x205 (1.2x8.03) |
| Weight, lbs (kg) |
385 (175) |
| Bucket Type |
Pin-on |
| Width, in (mm) |
48 (1220) |
| Depth, in (mm) |
19.5 (495) |
| Height, in (mm) |
18.3 (465) |
| Struck Capacity, cu.ft (m3) |
4.9 (0.14) |
| Heaped Capacity, cu.ft (m3) |
6.1 (0.17) |
| Weight, lbs (kg) |
132 (60) |
| Maximum Lift Height at Pin, in (mm) |
71.3 (1810) |
| Maximum Lift Height under Bucket Level, in (mm) |
66.1 (1680) |
| Clearance with Bucket Dumped, in (mm) |
52.4 (1330) |
| Reach at Maximum Height, in (mm) |
26.2 (660) |
| Maximum Dump Angle, deg |
45 |
| Reach with Bucket on Ground, in (mm) |
54.7 (1390) |
| Bucket Rollback Angle, deg |
29 |
| Digging Depth, in (mm) |
4.7 (120) |
| Lift Capacity to Full Height at Pin, lbs (kg) |
750 (340) |
| Lift Capacity to Full Height at 19.7" (0.5m) ahead of Pin, lbs (kg) |
518 (235) |
| Breakout Force at Pin, lbs (kg) |
1415 (643) |
| Breakout Force at 19.7" (0.5m) ahead of Pin, lbs (kg) |
992 (450) |
| Raising Time, sec |
3.5 |
| Lowering Time, sec |
2.7 |
| Bucket Dumping Time |
1.7 |
| Bucket Rollback Time |
2.4 |
