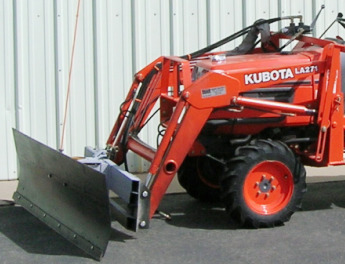

Kubota LA271 Front End Loader
The
Kubota LA271 loader is compatible with a Kubota B7300 tractor. The LA271 loader
hydraulic system includes double-acting hydraulic bucket and boom cylinders.
The 48" standard material bucket has a lenght of 465 mm (18.3"), weight
of 54 kg (120 lbs), and heaped capacity of 0.17 m3 (6.2 cubic feet). The
Kubota LA271 front end loader has a lift capacity of 270 kg or 595 lbs
(at bucket pin) to maximum height of 1780 mm (70.1"), and breakout force
is 455 kg (1000 lbs).
The clearance with bucket dumped is 1310 mm (51.6") at max dump angle of
45 degrees. The rated cycle times are 3.9 seconds lifting to full
height, and 2.5 seconds maximum bucket dumping.
| Tractor model |
Kubota B7300 |
| Front tires |
6.00-12 |
| Rear tires |
8.3-16 |
| Rated flow, lpm (gpm) |
16.6 (4.4) |
| Maximum pressure, kg/cm2 (psi) |
140 (2000) |
| Loader model |
Kubota LA271 |
| Net weight, kg (lbs) |
208 (460) |
| Boom cylinder bore, mm (in) |
38.1 (1.5) |
| Boom cylinder stroke, mm (in) |
307(12.1) |
| Bucket cylinder bore, mm (in) |
38.1 (1.5) |
| Bucket cylinder stroke, mm (in) |
330 (13.0) |
| Width, mm (in) |
1220 (48.0) |
| Length, mm (in) |
465 (18.3) |
| Height, mm (in) |
490 (19.2) |
| Bucket Capacity (Struck), m3 (cu.ft.) |
0.15 (5.2) |
| Bucket Capacity (Heaped), m3 (cu.ft.) |
0.17 (6.2) |
| Weight, kg (lbs) |
54 (120) |
| Maximum Lifting Height, mm (in) |
1780 (70.1) |
| Clearance with Bucket Dumped, mm (in) |
1310 (51.6) |
| Reach at Maximum Height, mm (in) |
680 (26.8) |
| Maximum Dump Angle, deg |
45 |
| Reach with Bucket on Ground, mm (in) |
1280 (50.4) |
| Bucket Rollback Angle, deg |
24 |
| Digging Depth, mm (in) |
110 (4.3) |
| Overall Height in Carrying Position, mm (in) |
1150 (45.3) |
| Rated Lift Capacity, kg (lbs) |
270 (595) |
| Rated Breakout force, kg (lbs) |
455 (1000) |
| Raising time, sec. |
3,9 |
| Lowering time, sec. |
3,1 |
| Bucket dumping time, sec. |
2,5 |
| Bucket rollback time, sec. |
2,1 |
