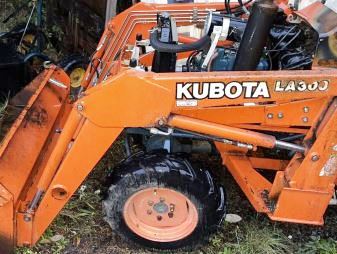

Kubota LA300 Front-End Loader
The
Kubota LA300 loader is available for Kubota B1550, B1750, B7200 tractors. The
Kubota LA300 loader has double acting hydraulic lifting and bucket cylinders.
The loader’s maximum lift height is 70.7" (1790 mm) at pin and clearance with
bucket dumped is 52.2" (1320 mm).
The lifting capacity is 600 lbs (272 kg) at maximum height (bucket pin), and breakout force is 1150 lbs (521 kg) with bucket on ground. The raising time is 3.8 sec from ground line to max height, and bucket dumping time is 1.7 sec. Compatible buckets for the Kubota LA300 front-end loader: 48" (1220 mm) standard material bucket with a heaped capacity of 0.17 m3 (6.2 cu.ft).
| Compatible Tractor Models |
Tractor Models .................... Kubota B1550, B1750, B7200
Front Tyre Size .................... 6.0x12
Rear Tyre Size .................... 9.5x16
Hydraulic Flow, gpm (lpm) .................... 5.5 (21.0)
Maximum Pressure, psi (bar) .................... 1850 (127)
| Loader |
Loader Model .................... Kubota LA300
Leveling System .................... Non-Self Leveling
Attachment Type .................... Pin-On
Lift Cylinder Bore, in (mm) .................... 1.5 (38)
Bucket Cylinder Bore, in (mm) .................... 1.5 (38)
| Bucket |
Width, in (mm) .................... 48 (1220)
Depth, in (mm) .................... 18.4 (465)
Height, in (mm) .................... 18.9 (480)
Bucket Capacity (Struck), cu.ft (m3) .................... 5.2 (0.15)
Bucket Capacity (Heaped), cu.ft (m3) .................... 6.2 (0.17)
Weight, lbs (kg) .................... 120 (54)
| Loader Dimensions |
Maximum Lift Height at Pivot Pin, in (mm) .................... 70.7 (1790)
Clearance with Bucket Dumped, in (mm) .................... 52.2 (1320)
Digging Depth, in (mm) .................... 2 (51)
Reach at Maximum Lift Height, in (mm) .................... 23.4 (590)
Reach with Bucket on Ground, in (mm) .................... 45 (1140)
Maximum Dump Angle, deg .................... 45
Maximum Rollback Angle, deg .................... 25
| Operating Specifications |
Lift Capacity to Full Height at Pivot Pin, lbs (kg) .................... 600 (272)
Breakout Force at Pivot Pin, lbs (kg) .................... 1150 (521)
| Cycle Times |
Loader Raise Time, sec .................... 3.8
Loader Lower Time, sec .................... 3.6
Bucket Dump Time, sec .................... 1.7
Bucket Rollback Time, sec .................... 1.8
