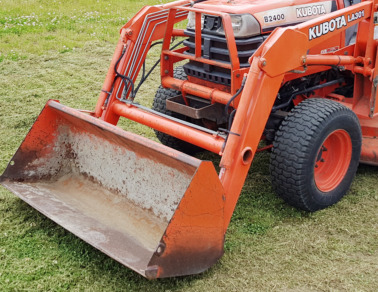

Kubota LA301 Front End Loader

The Kubota LA301 loader is available for Kubota B1700, B2100 tractors. The loader hydraulic system includes double-acting hydraulic boom and bucket cylinders.

The Kubota LA301 front end loader’s max lift height is 1790 mm (70.5 inches) at pin, and bucket dump clearance is 1320 mm (52.1 inches). The lifting capacity is 300 kg (660 lb) at maximum height (pivot pin), and breakout force (bucket on ground) is 522 kg (1150 lb). The rated cycle times are 2.9 seconds lifting to full height, and 2.1 seconds to full bucket dump.

The Kubota LA301 is equipped with 48 inches (1220 mm) standard material bucket with a heaped capacity of 0.17 cu.m (6.2 cubic inches).

Compatible Tractors
Tractor model Kubota B1700, B2100
Front tires 6,0-12
Rear tires 9,5-16
Rated flow, lpm (gpm) 16.6 (4.4)
Maximum pressure, kg/cm2 (psi) 155 (2200)

Loader
Loader model Kubota LA301
Net weight, kg (lbs) 216 (475)
Boom cylinder bore, mm (in) 38.1 (1.5)
Boom cylinder stroke, mm (in) 307(12.1)
Bucket cylinder bore, mm (in) 38.1 (1.5)
Bucket cylinder stroke, mm (in) 330 (13.0)

Standard Material Bucket
Width, mm (in) 1220 (48.0)
Length, mm (in) 465 (18.3)
Height, mm (in) 490 (19.2)
Bucket Capacity (Struck), m3 (cu.ft.) 0.15 (5.2)
Bucket Capacity (Heaped), m3 (cu.ft.) 0.17 (6.2)
Weight, kg (lbs) 54 (120)

Loader Dimensions
Maximum Lifting Height, mm (in) 1790 (70.5)
Clearance with Bucket Dumped, mm (in) 1320 (52.1)
Reach at Maximum Height, mm (in) 645 (25.4)
Maximum Dump Angle, deg 45
Reach with Bucket on Ground, mm (in) 1295 (51.1)
Bucket Rollback Angle, deg 24
Digging Depth, mm (in) 95 (3.7)
Overall Height in Carrying Position, mm (in) 1160 (45.7)

Operating Data
Rated Lift Capacity, kg (lbs) 300 (660)
Rated Breakout force, kg (lbs) 523 (1150)

Cycle Times
Raising time, sec. 2,9
Lowering time, sec. 2,3
Bucket dumping time, sec. 2,1
Bucket rollback time, sec. 1,6
