Kubota LA332 Front End Loader
The

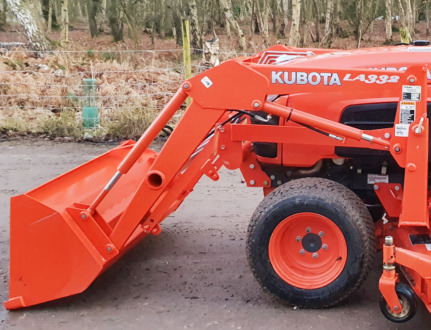

Kubota LA332 non self leveling front end loader was designed for Kubota B1830,
B2230, B2530 tractors. The loader hydraulic system includes double-acting bucket
and boom hydraulic cylinders. The loader has a lift capacity (at pin) of 835 lbs
(380 kg) to full height of 70.3" (1785 mm), and bucket's breakout force of 1730
lbs (785 kg).
A full dump clearance with a 45-degree maximum dump angle is 52.4" (1330
mm). The estimated cycle times are 2.9 seconds lifting to full height,
and 1.7 seconds maximum bucket dumping. The Kubota LA332 loader is
compatible with a 48" (1220 mm) standard material bucket with a heaped
capacity of 6.2 cu.ft (0.17 m3).
| Tractor Model |
Kubota B1830, B2230, B2530 |
| Front Tire Size |
6.00x12 |
| Rear Tire Size |
9.50x16 |
| Pump Flow, gpm (lpm) |
5.4 (20.5) |
| Hydraulic Pressure, bar (psi) |
152 (2200) |
| Loader Model |
Kubota LA332 |
| Leveling System |
Non self leveling |
| Lift Cylinder Size (Bore/Stroke), in (mm) |
38x307 (1.5x12.1) |
| Bucket Cylinder Size (Bore/Stroke), in (mm) |
38x330 (1.5x13.1) |
| Weight, lbs (kg) |
475 (216) |
| Width, in (mm) |
48 (1220) |
| Depth, in (mm) |
18.4 (465) |
| Height, in (mm) |
18.9 (480) |
| Struck Capacity, cu.ft (m3) |
5.2 (0.15) |
| Heaped Capacity, cu.ft (m3) |
6.2 (0.17) |
| Weight, lbs (kg) |
120 (54) |
| Maximum Lift Height at Pin, in (mm) |
70.3 (1785) |
| Clearance with Bucket Dumped, in (mm) |
52.4 (1330) |
| Reach at Maximum Height, in (mm) |
26.3 (670) |
| Maximum Dump Angle, deg |
45 |
| Reach with Bucket on Ground, in (mm) |
50.6 (1285) |
| Bucket Rollback Angle, deg |
24 |
| Digging Depth, in (mm) |
3.2 (80) |
| Overall Height in Carry Position, in (mm) |
45.6 (1160) |
| Lift Capacity to Full Height at Pin, lbs (kg) |
835 (380) |
| Lift Capacity to Full Height at 19.7" (0.5m) ahead of Pin, lbs (kg) |
595 (270) |
| Breakout Force at Pin, lbs (kg) |
1730 (785) |
| Breakout Force at 19.7" (0.5m) ahead of Pin, lbs (kg) |
1230 (560) |
| Raising Time, sec |
2.9 |
| Lowering Time, sec |
2.4 |
| Bucket Dumping Time |
1.7 |
| Bucket Rollback Time |
1.9 |
