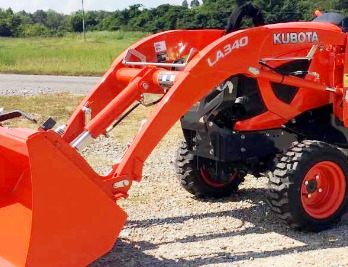

Kubota LA340 Front End Loader

The Kubota LA340 front end loader is used for Kubota BX23S tractor. The front end loader has double acting bucket and lifting hydraulic cylinders.

The Kubota LA340 loader’s max lift height is 1804 mm (71 in) at pin, and bucket dump clearance is 1323 mm (52.1 in). The lift capacity is 335 kg (739 lbs) to max height at pin, and breakout force (bucket on ground) is 640 kg (1407 lbs).

The raising time is 3.3 sec from ground level to max height, and bucket dump time is 2.7 sec. The Kubota LA340 loader is compatible with a 48" (1220 mm) standard material bucket with a heaped capacity of 6 cu.ft (0.17 m3).

Compatible Tractors
Tractor model Kubota BX23S
Wheel base 1390 mm (55,1 in.)
Front tires 18x8.5-10
Rear tires 26x12-12
Rated flow 14 L/m (3.7 gpm)
Maximum pressure 12.8 MPa (1860 psi)

Loader
Loader model Kubota LA340
Net weight (Approximate) 217 kg (478 lbs)
Boom cylinder bore 40 mm (1.6 in.)
Boom cylinder stroke 326 mm (12.8 in.)
Bucket cylinder bore 65 mm (2.6 in.)
Bucket cylinder stroke 196 mm (7.72 in.)

Standard Material Bucket
Bucket Type Pin On
Width 1219 mm (47.99 in.)
Depth 491 mm (19.3 in.)
Height 465 mm (18.3 in.)
Length 538 mm (21.2 in.)
Bucket Capacity (Struck) 0.14 m3 (4.9 cu.ft.)
Bucket Capacity (Heaped) 0.17 m3 (6.0 cu.ft.)
Weight 60 kg (130 lbs.)


Loader Dimensions
Max. lift height (To bucket pivot pin) 1804 mm (71.02 in.)
Max. lift height under level bucket 1662 mm (65.43 in.)
Clearance with bucket dumped 1323 mm (52.09 in.)
Reach at max. lift height (Dumping reach) 646 mm (25.4 in.)
Max. dump angle 0.785 rad (45°)
Reach with bucket on ground 1392 mm (54.80 in.)
Bucket rollback angle 0.51 rad (29°)
Digging depth 125 mm (4.92 in.)
Overall height in carrying position 990 mm (39.0 in.)

Operating Data
Lift capacity (Bucket pivot pin, max. height) 335 kg (739 lbs)
Lift capacity (500 mm forward, max. height) 231 kg (509 lbs)
Lift capacity (Bucket pivot pin, 1500 mm (59 in.) height) 372 kg (820 lbs)
Lift capacity (500 mm forward, 1500 mm height) 268 kg (591 lbs)
Breakout force (Bucket pivot pin) 640 kg (1407 lbs)
Breakout force (500 mm forward) 450 kg (987 lbs)
Bucket rollback force at max. height 484 kg (1064 lbs)
Bucket rollback force at 1.5M (5.9 in.) 568 kg (1249 lbs)
Bucket rollback force at ground level 558 kg (1227 lbs)

Cycle Times
Raising time 3,3
Lowering time 2,5
Bucket dumping time 2,7
Bucket rollback time 2,3
