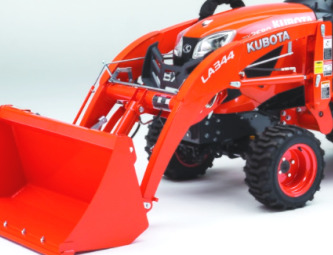

Kubota LA344 Front End Loader

The Kubota LA344 loader is designed to fit Kubota BX1880, BX2380 tractors. The loader has double acting bucket and lifting hydraulic cylinders.

The Kubota LA344 front end loader has a lift capacity (at bucket pin) of 335 kg (739 lbs) to full height of 1795 mm (70.7 in), and breakout force of 640 kg (1407 lbs). The bucket dump clearance with a 45-degree max dump angle is 1316 mm (51.8 in).

The rated cycle times are 3.3 seconds raising to maximum height, and 2.7 seconds to full bucket dump. The Kubota LA344 loader is equipped with a 48" (1220 mm) standard material bucket with a heaped capacity of 0.17 cu.m (6 cu.ft).

Compatible Tractors
Tractor model Kubota BX1880, BX2380
Wheel base 1400 mm (55.1 in.)
Front tires 16x7.5-8
Rear tires 24x12-12
Rated flow 14 L/m (3.7 gpm)
Maximum pressure 12.8 MPa (1850 psi)

Loader
Loader Model Kubota LA344
Net weight (Approximate) 217 kg (478 lbs)
Boom cylinder bore 40 mm (1.57 in.)
Boom cylinder stroke 326 mm (12.8 in.)
Bucket cylinder bore 65 mm (2.56 in.)
Bucket cylinder stroke 196 mm (7.7 in.)

Standard Material Bucket
Bucket Type Pin On
Width 1219 mm (48.0 in.)
Depth 491 mm (19.3 in.)
Height 465 mm (18.3 in.)
Length 538 mm (21.2 in.)
Bucket Capacity (Struck) 0.14 m3 (4.9 cu.ft.)
Bucket Capacity (Heaped) 0.17 m3 (6.0 cu.ft.)
Weight 60 kg (132 lbs)


Loader Dimensions
Max. lift height (To bucket pivot pin) 1795 mm (70.7 in.)
Max. lift height under level bucket 1652 mm (65.0 in.)
Clearance with bucket dumped 1316 mm (51.8 in.)
Reach at max. lift height (Dumping reach) 642 mm (25.3 in.)
Max. dump angle 0.79 rad (45 deg)
Reach with bucket on ground 1398 mm (55.0 in.)
Bucket rollback angle 0.52 rad (30 deg)
Digging depth 134 mm (5.3 in.)
Overall height in carrying position 981 mm (38.6 in.)

Operating Data
Lift capacity (Bucket pivot pin, max. height) 335 kg (739 lbs)
Lift capacity (500 mm forward, max. height) 231 kg (509 lbs)
Lift capacity (Bucket pivot pin, 1500 mm (59 in.) height) 372 kg (820 lbs)
Lift capacity (500 mm forward, 1500 mm height) 268 kg (591 lbs)
Breakout force (Bucket pivot pin) 640 kg (1407 lbs)
Breakout force (500 mm forward) 449 kg (987 lbs)
Bucket rollback force at max. height 484 kg (1064 lbs)
Bucket rollback force at 1500 mm (5.9 in.) height 567 kg (1249 lbs)
Bucket rollback force at ground level 557 kg (1227 lbs)

Cycle Times
Raising time 3.3 sec.
Lowering time 2.5 sec.
Bucket dumping time 2.7 sec.
Bucket rollback time 2.3 sec.
