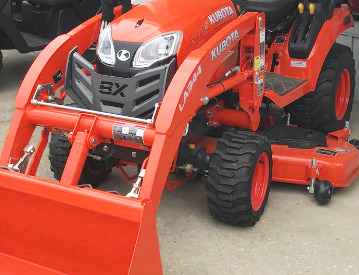

Kubota LA344S Front End Loader
The
Kubota LA344S front end loader was designed for Kubota BX2380, BX2680 tractors.
The loader hydraulic system includes double-acting bucket and boom hydraulic
cylinders.
The Kubota LA344S loader has a lift capacity (at pin) of 278 kg (613
lbs) to full height of 1804 mm (71") and bucket's breakout force of 585
kg (1286 lbs). A full dump clearance with a 45-degree maximum dump angle
is 1288 mm (50.7").
The estimated cycle times are 3.3 seconds lifting to full height, and
2.7 seconds maximum bucket dumping. The Kubota LA344S loader is
compatible with a 48" (1220 mm) standard material bucket with a heaped
capacity of 0.17 cu.m (6 cu.ft).
| Tractor model |
Kubota BX2380, BX2680 |
| Wheel base |
1400 mm (55.1 in.) |
| Front tires |
18x8.5-10 |
| Rear tires |
26x12-12 |
| Rated flow |
14 L/m (3.7 gpm) |
| Maximum pressure |
12.8 MPa (1850 psi) |
| Loader Model |
Kubota LA344S |
| Net weight (Approximate) |
217 kg (478 lbs) |
| Boom cylinder bore |
40 mm (1.57 in.) |
| Boom cylinder stroke |
326 mm (12.8 in.) |
| Bucket cylinder bore |
65 mm (2.56 in.) |
| Bucket cylinder stroke |
196 mm (7.7 in.) |
| Bucket Type |
Quick attach |
| Width |
1219 mm (48.0 in.) |
| Depth |
470 mm (18.5 in.) |
| Height |
523 mm (20.6 in.) |
| Length |
586 mm (23.1 in.) |
| Bucket Capacity (Struck) |
0.13 m3 (4.6 cu.ft.) |
| Bucket Capacity (Heaped) |
0.17 m3 (6.0 cu.ft.) |
| Weight |
56 kg (123 lbs) |
| Max. lift height (To bucket pivot pin) |
1804 mm (71.0 in.) |
| Max. lift height under level bucket |
1664 mm (65.5 in.) |
| Clearance with bucket dumped |
1288 mm (50.7 in.) |
| Reach at max. lift height (Dumping reach) |
677 mm (26.5 in.) |
| Max. dump angle |
0.79 rad (45 deg) |
| Reach with bucket on ground |
1438 mm (56.6 in.) |
| Bucket rollback angle |
0.51 rad (29 deg) |
| Digging depth |
122 mm (4.8 in.) |
| Overall height in carrying position |
990 mm (39.0 in.) |
| Lift capacity (Bucket pivot pin, max. height) |
278 kg (613 lbs) |
| Lift capacity (500 mm forward, max. height) |
192 kg (423 lbs) |
| Lift capacity (Bucket pivot pin, 1500 mm (59 in.) height) |
317 kg (699 lbs) |
| Lift capacity (500 mm forward, 1500 mm height) |
229 kg (505 lbs) |
| Breakout force (Bucket pivot pin) |
585 kg (1286 lbs) |
| Breakout force (500 mm forward) |
409 kg (901 lbs) |
| Bucket rollback force at max. height |
452 kg (996 lbs) |
| Bucket rollback force at 1.5M (5.9 in.) |
537 kg (1183 lbs) |
| Bucket rollback force at ground level |
530 kg (1168 lbs) |
| Raising time |
3.3 sec. |
| Lowering time |
2.5 sec. |
| Bucket dumping time |
2.7 sec. |
| Bucket rollback time |
2.3 sec. |
