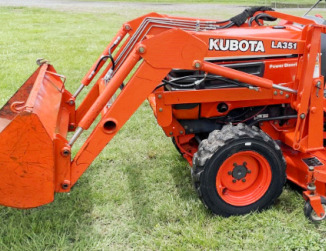

Kubota LA351 Front End Loader

The Kubota LA351 front end loader fits the Kubota B2400 tractor. The Kubota LA351 front end loader is equipped with double acting bucket and boom hydraulic cylinders.

The loader’s max lift height is 1790 mm (70.5 in) at pin and bucket dump clearance is 1310 mm (51.6 in). The lifting capacity is 350 kg (770 lbs) at max. height (pivot pin), and breakout force is 607 kg (1335 lbs).

The raising time is 3.3 sec from ground line to full height, and bucket dumping time is 2.7 sec. The Kubota LA351 loader is compatible with a 50" (1270 mm) standard material bucket with a rated capacity of 0.23 m3 (8.1 cu.ft).

Compatible Tractors
Tractor model Kubota B2400
Front tires 7.00x12
Rear tires 11.2x16
Rated flow, lpm (gpm) 16.6 (4.4)
Maximum pressure, Bar (psi) 138 (2000)

Loader
Loader Model Kubota LA351
Net weight, kg (lbs) 226 (500)
Boom cylinder bore, mm (in) 44.5 (1.75)
Boom cylinder stroke, mm (in) 289 (11.4)
Bucket cylinder bore, mm (in) 44.5 (1.75)
Bucket cylinder stroke, mm (in) 330 (13.0)

Standard Material Bucket
Width, mm (in) 1270 (50.0)
Length, mm (in) 490 (19.2)
Height, mm (in) 490 (19.2)
Bucket Capacity (Struck), m3 (cu.ft.) 0.19 (6.7)
Bucket Capacity (Heaped), m3 (cu.ft.) 0.23 (8.1)
Weight, kg (lbs) 79 (175)


Loader Dimensions
Maximum Lifting Height, mm (in) 1790 (70.5)
Clearance with Bucket Dumped, mm (in) 1310 (51.6)
Reach at Maximum Height, mm (in) 635 (25.1)
Maximum Dump Angle, deg 45
Reach with Bucket on Ground, mm (in) 1320 (52.1)
Bucket Rollback Angle, deg 24
Digging Depth, mm (in) 95 (3.7)
Overall Height in Carrying Position, mm (in) 1160 (45.7)

Operating Data
Rated Lift Capacity, kg (lbs) 350 (770)
Rated Breakout force, kg (lbs) 607 (1335)

Cycle Times
Raising time, sec. 3,3
Lowering time, sec. 2,6
Bucket dumping time, sec. 2,7
Bucket rollback time, sec. 2,1
