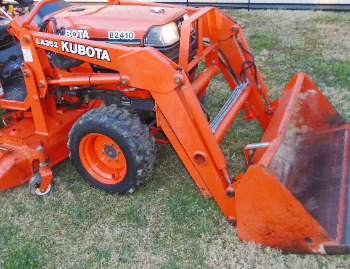

Kubota LA352 Front End Loader
The
Kubota LA352 front end loader is used for Kubota B2410 tractor. The front end
loader has double-acting hydraulic lift and bucket cylinders.
The loader’s maximum lift height is 1770 mm (69.7 in) at pin, and bucket
dump clearance is 1310 mm (51.6 in).
The lift capacity is 350 kg (770 lb) to max height at pin, and boom
breakout force is 857 kg (1885 lb). The time to raise the boom is 3.1
seconds from ground level to maximum height, and bucket dumping time is
1.9 seconds.
The Kubota LA352 loader is compatible with a 50" (1270 mm) standard
material bucket with a nominal heaped capacity of 0.18 m3 (6.5 cu.ft)
and weight of 62 kg (137 lb).
| Tractor model |
Kubota B2410 |
| Wheel base, mm (in) |
1500 (59.1) |
| Front tires |
7.00-12 |
| Rear tires |
11.20-16 |
| Rated flow, lpm (gpm) |
16.6 (4.4) |
| Maximum pressure, kg/cm2 (psi) |
141 (2000) |
| Loader model |
Kubota LA352 |
| Net weight, kg (lbs) |
226 (500) |
| Boom cylinder bore, mm (in) |
44.5 (1.75) |
| Boom cylinder stroke, mm (in) |
289 (11.4) |
| Bucket cylinder bore, mm (in) |
44.5 (1.75) |
| Bucket cylinder stroke, mm (in) |
330 (13.0) |
| Width, mm (in) |
1270 (50.0) |
| Depth, mm (in) |
495 (19.4) |
| Height, mm (in) |
485 (19.1) |
| Length, mm (in) |
525 (20.6) |
| Capacity (Struck), m3 (cu.ft.) |
0.16 (5.5) |
| Capacity (Heaped), m3 (cu.ft.) |
0.18 (6.5) |
| Weight, kg (lbs) |
62 (137) |
| Max. lift height (at bucket pivot pin), mm (in) |
1770 (69.7) |
| Max. lift height under level bucket, mm (in) |
1630 (64.2) |
| Clearance with bucket dumped, mm (in) |
1310 (51.6) |
| Reach at max. lift height (Dumping reach), mm (in) |
635 (25.0) |
| Max. dump angle, deg |
45 |
| Reach with bucket on ground, mm (in) |
1320 (52.0) |
| Bucket rollback angle, deg |
24 |
| Digging depth, mm (in) |
80 (3.1) |
| Overall height in carrying position, mm (in) |
1160 (45.7) |
| Lift capacity to max. height (Bucket bottom mid point), kg (lbs) |
350 (770) |
| Lift capacity (Bucket pivot pin, max. height), kg (lbs) |
420 (925) |
| Lift capacity (500 mm forward pivot pin, max. height), kg (lbs) |
305 (670) |
| Lift capacity (Bucket pivot pin, 1500 mm (59 in.) height), kg (lbs) |
470 (1035) |
| Lift capacity (500 mm forward pivot pin, 1500 mm height), kg (lbs) |
350 (770) |
| Breakout force (Bucket pivot pin), kg (lbs) |
857 (1885) |
| Breakout force (500 mm forward pivot pin), kg (lbs) |
607 (1335) |
| Bucket rollback force at max. height, kg (lbs) |
861 (1895) |
| Bucket rollback force at 1500 mm (59 in.), kg (lbs) |
932 (2050) |
| Bucket rollback force at ground level, kg (lbs) |
760 (1675) |
| Raising time, sec. |
3,1 |
| Lowering time, sec. |
2,5 |
| Bucket dumping time, sec. |
1,9 |
| Bucket rollback time, sec. |
2,5 |
