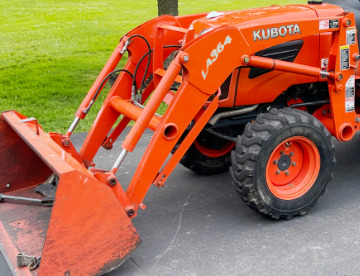

Kubota LA364 Front End Loader
The
Kubota LA364 loader is designed for Kubota B2620, B2920 tractors. The front end
loader hydraulic system includes double-acting hydraulic boom and bucket
cylinders.
The Kubota LA364 front end loader has a lifting capacity (at pivot pin)
of 950 lbs (430 kg) to max height of 78.6 in (1990 mm) and breakout
force of 2145 lbs (970 kg). The clearance with bucket dumped is 60.9 in
(1540 mm) at maximum dump angle of 40 degrees.
The rated cycle times are 3.7 seconds raising to full height, and 1.9
seconds full bucket dumping. The Kubota LA364 loader is equipped with a
50" (1270 mm) standard material bucket with a rated capacity of 0.18 m3
(6.5 cu.ft).
| Tractor Models |
Kubota B2620, B2920 |
| Front Tires |
7.00x12 |
| Rear Tires |
11.2x16 |
| Hydraulic System Flow, gpm (lpm) |
4.7 (17.9) |
| Hydraulic Pressure, bar (psi) |
140 (2000) |
| Loader Model |
Kubota LA364 |
| Lift Cylinder Bore, in (mm) |
1.77 (45.0) |
| Lift Cylinder Stroke, in (mm) |
13.7 (348) |
| Bucket Cylinder Bore, in (mm) |
1.77 (45.0) |
| Bucket Cylinder Stroke, in (mm) |
13.2 (336) |
| Weight, lbs (kg) |
610 (280) |
| Width, in (mm) |
50 (1270) |
| Depth, in (mm) |
18.8 (478) |
| Height, in (mm) |
19 (483) |
| Length, in (mm) |
20.6 (523) |
| Capacity (Struck), cu.ft (m3) |
5,4 (0,15) |
| Capacity (Heaped), cu.ft (m3) |
6,5 (0,18) |
| Weight, lbs (kg) |
150 (68) |
| Maximum Lift Height to Pivot Pin, in (mm) |
78.6 (1990) |
| Clearance with Bucket Dumped, in (mm) |
60.9 (1540) |
| Reach at Maximum Lift Height, in (mm) |
22.7 (576) |
| Maximum Dump Angle, degrees |
40 |
| Digging Depth, in (mm) |
3.9 (100) |
| Maximum Rollback Angle, degrees |
25 |
| Overall Height in Carry Position, in (mm) |
43.4 (1102) |
| Lift Capacity to Max. Height at Pivot Point, lbs (kg) |
950 (430) |
| Lift Capacity to Max. Height at 0.5m (19.5") from Bucket Pivot Point, lbs (kg) |
660 (300) |
| Breakout Force at Bucket Pivot Point, lbs (kg) |
2145 (970) |
| Breakout Force at 0.5m (19.5") from Bucket Pivot Point, lbs (kg) |
1520 (690) |
| Rollback Force at Ground Level, lbs (kg) |
1740 (790) |
| Loader Raise, sec. |
3,7 |
| Loader Lower, sec. |
2,7 |
| Bucket Dump, sec. |
1,9 |
| Bucket Rollback, sec. |
2,6 |
