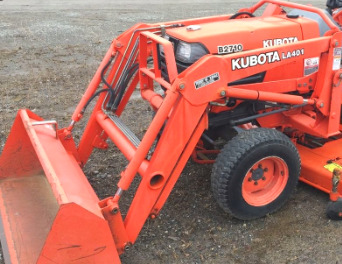

Kubota LA401 Front End Loader

The Kubota LA401 loader fits Kubota B2710 tractor. The loader is equipped with double acting hydraulic boom and bucket cylinders. The Kubota LA401 loader has a max lift height of 2130 mm (83.9") at pin and clearance with bucket dumped of 1664 mm (65.5").

The lifting capacity is rated at 400 kg (882 lbs) to maximum height, and breakout force is 721 kg (1586 lbs). The boom raising time is 3.2 seconds from ground level to maximum height, and bucket dump time is 2.4 seconds.

The Kubota LA401 front end loader is equipped with a 60" (1525 mm) standard material bucket with a heaped capacity of 0.28 m3 (9.9 cu.ft).

Compatible Tractors
Tractor model Kubota B2710
Front tires 7,0-12
Rear tires 12,4-16
Rated flow, lpm (gpm) 16.6 (4.4)
Maximum pressure, bar (psi) 140.5 (2000)

Loader
Loader Model Kubota LA401
Net weight, kg (lbs) 280 (617)
Boom cylinder bore, mm (in) 44.5 (1.75)
Boom cylinder stroke, mm (in) 435 (17.2)
Bucket cylinder bore, mm (in) 44.5 (1.75)
Bucket cylinder stroke, mm (in) 450 (17.7)

Standard Material Bucket
Width, mm (in) 1524 (60.0)
Length, mm (in) 518 (20.4)
Height, mm (in) 530 (20.9)
Bucket Capacity (Struck), m3 (cu.ft.) 0.23 (8.1)
Bucket Capacity (Heaped), m3 (cu.ft.) 0.28 (9.9)
Weight, kg (lbs) 82 (181)


Loader Dimensions
Maximum Lifting Height, mm (in) 2130 (83.9)
Clearance with Bucket Dumped, mm (in) 1664 (65.5)
Reach at Maximum Height, mm (in) 660 (26.1)
Maximum Dump Angle, deg 40
Reach with Bucket on Ground, mm (in) 1376 (54.2)
Bucket Rollback Angle, deg 26
Digging Depth, mm (in) 185 (7.3)
Overall Height in Carrying Position, mm (in) 1195 (47.1)

Operating Data
Rated Lift Capacity, kg (lbs) 400 (882)
Rated Breakout force, kg (lbs) 721 (1586)

Cycle Times
Raising time, sec. 3,2
Lowering time, sec. 2,4
Bucket dumping time, sec. 2,4
Bucket rollback time, sec. 1,9
