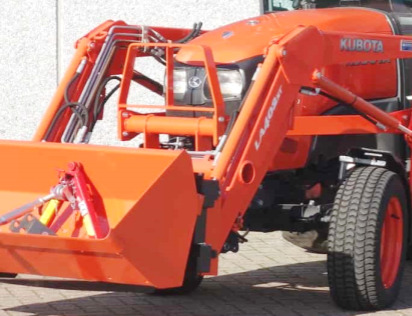

Kubota LA402ST Front End Loader

The Kubota LA402ST non self leveling front end loader is designed to fit Kubota STV32, STV36, STV40 tractors. The loader hydraulic system includes double-acting lifting and bucket hydraulic cylinders. The loader has a maximum lift height of 83.3" (2115 mm) at pin and clearance with bucket dumped of 65.5" (1665 mm).

The lift capacity is rated at 1035 lbs (470 kg) to maximum height, and breakout force (bucket on ground) is 2260 lbs (1027 kg). The raising cycle time is 3.3 sec from ground level to full height, and bucket dump time is 1.9 sec. The loader Kubota LA402ST is equipped with a 54" (1370 mm) standard material bucket with heaped capacity of 8.8 cu.ft (0.25 cu.m).

Compatible Tractors
Tractor Model Kubota STV32, STV36, STV40
Front Tire Size 6.00x12
Rear Tire Size 9.50x22
Pump Flow, gpm (lpm) 6.1 (23.0)
Hydraulic Pressure, bar (psi) 170 (2465)

Loader
Loader Model Kubota LA402ST
Leveling System Non self leveling
Lift Cylinder Size (Bore/Stroke), in (mm) 45x435 (1.75x17.1)
Bucket Cylinder Size (Bore/Stroke), in (mm) 45x450 (1.75x17.7)
Weight, lbs (kg) 615 (280)

Bucket
Width, in (mm) 54 (1370)
Depth, in (mm) 19.1 (485)
Height, in (mm) 20.6 (525)
Struck Capacity, cu.ft (m3) 6.7 (0.19)
Heaped Capacity, cu.ft (m3) 8.8 (0.25)
Weight, lbs (kg) 175 (79)


Loader Dimensions
Maximum Lift Height at Pin, in (mm) 83.3 (2115)
Clearance with Bucket Dumped, in (mm) 65.5 (1665)
Reach at Maximum Height, in (mm) 25.4 (645)
Maximum Dump Angle, deg 38
Reach with Bucket on Ground, in (mm) 55.5 (1410)
Bucket Rollback Angle, deg 25
Digging Depth, in (mm) 5.9 (150)
Overall Height in Carry Position, in (mm) 47.2 (1200)

Operating Data
Lift Capacity to Full Height at Pin, lbs (kg) 1035 (470)
Lift Capacity to Full Height at 19.7" (0.5m) ahead of Pin, lbs (kg) 750 (340)
Breakout Force at Pin, lbs (kg) 2260 (1027)
Breakout Force at 19.7" (0.5m) ahead of Pin, lbs (kg) 1650 (750)

Cycle Times
Raising Time, sec 3.3
Lowering Time, sec 2.5
Bucket Dumping Time 1.9
Bucket Rollback Time 2.5
