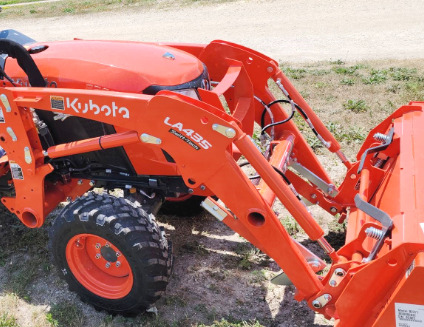

Kubota LA435 Front End Loader

The Kubota LA435 non self leveling front end loader fits Kubota B2301, B2401, B2601 tractors. The loader has double acting hydraulic bucket and lifting cylinders. The loader has a max lift height of 78.5" (1995 mm) at pin and clearance with bucket dumped of 61.7" (1570 mm). The lifting capacity is 950 lbs (430 kg) at max height (bucket pin), and breakout force is 2145 lbs (973 kg).

The estimated cycle times are 3.8 seconds raising to maximum height and 1.9 seconds maximum bucket dumping. The Kubota LA435 loader is compatible with the following buckets: 50" (1270 mm) pin-on or quick attach bucket with heaped capacity of 6.5 cu.ft (0.18 cu.m), or 54" (1370 mm) pin-on or quick attach bucket with heaped capacity of 8.8 cu.ft (0.25 cu.m).

Compatible Tractors
Tractor Model Kubota B2301, B2401, B2601
Front Tire Size 7.00x12
Rear Tire Size 11.2x16
Pump Flow, gpm (lpm) 4.7 (18.0)
Hydraulic Pressure, bar (psi) 141 (2000)

Loader
Loader Model Kubota LA435
Leveling System Non self leveling
Lift Cylinder Size (Bore/Stroke), in (mm) 45x350 (1.77x13.7)
Bucket Cylinder Size (Bore/Stroke), in (mm) 45x335 (1.77x13.2)
Weight, lbs (kg) 460 (208)

50" Standard Material Bucket
Bucket Type Pin-on or Quick attach
Width, in (mm) 50 (1270)
Struck Capacity, cu.ft (m3) 5.4 (0.15)
Heaped Capacity, cu.ft (m3) 6.5 (0.18)
Weight, lbs (kg) 150 (68)

54" Standard Material Bucket
Bucket Type Pin-on or Quick attach
Width, in (mm) 54 (1370)
Struck Capacity, cu.ft (m3) 6.7 (0.19)
Heaped Capacity, cu.ft (m3) 8.8 (0.25)
Weight, lbs (kg) 198 (90)


Loader Dimensions
Maximum Lift Height at Pin, in (mm) 78.5 (1995)
Maximum Lift Height under Bucket Level, in (mm) 72.9 (1855)
Clearance with Bucket Dumped, in (mm) 61.7 (1570)
Reach at Maximum Height, in (mm) 15.4 (395)
Maximum Dump Angle, deg 40
Reach with Bucket on Ground, in (mm) 51 (1295)
Bucket Rollback Angle, deg 25
Digging Depth, in (mm) 3.8 (96)

Operating Data
Lift Capacity to Full Height at Pin, lbs (kg) 950 (430)
Lift Capacity to Full Height at 19.7" (0.5m) ahead of Pin, lbs (kg) 660 (300)
Breakout Force at Pin, lbs (kg) 2145 (973)
Breakout Force at 19.7" (0.5m) ahead of Pin, lbs (kg) 1520 (690)

Cycle Times
Raising Time, sec 3.8
Lowering Time, sec 2.7
Bucket Dumping Time 1.9
Bucket Rollback Time 2.5
