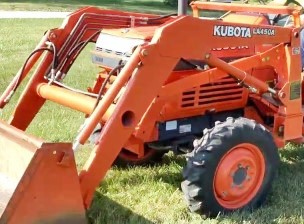

Kubota LA450A Front-End Loader
The
Kubota LA450A front end loader is designed for Kubota L2250, L2650, L2950
tractors. The loader has double acting hydraulic bucket and lift cylinders. The
Kubota LA450A front end loader has a lift capacity (at bucket pin) of 992 lbs
(450 kg) to a max height of 95 in (2410 mm), and breakout force (bucket on
ground) of 1863 lbs (845 kg). The clearance with a bucket dumped is 75.5 in
(1910 mm) at a maximum dump angle of 41 degrees.
The estimated cycle times are 3.6 sec lifting to maximum height, and 1.7 sec maximum bucket dumping. The Kubota LA450A loader is compatible with a 60 in (1525 mm) standard material bucket with a heaped capacity of 0.28 m3 (9.9 cu.ft).
| Compatible Tractor Models |
Tractor Models .................... Kubota L2250, L2650, L2950
Front Tyre Size .................... 7.0x16
Rear Tyre Size .................... 11.2x24
Hydraulic Flow, gpm (lpm) .................... 8.2 (31.0)
Maximum Pressure, psi (bar) .................... 2500 (172)
| Loader |
Loader Model .................... Kubota LA450A
Leveling System .................... Non-Self Leveling
Attachment Type .................... Pin-On
Lift Cylinder Bore, in (mm) .................... 1.75 (45)
Bucket Cylinder Bore, in (mm) .................... 1.75 (45)
| Bucket |
Width, in (mm) .................... 60 (1525)
Depth, in (mm) .................... 19.1 (485)
Height, in (mm) .................... 21.3 (540)
Bucket Capacity (Struck), cu.ft (m3) .................... 8.1 (0.23)
Bucket Capacity (Heaped), cu.ft (m3) .................... 9.9 (0.28)
Weight, lbs (kg) .................... 181 (82)
| Loader Dimensions |
Maximum Lift Height at Pivot Pin, in (mm) .................... 95 (2410)
Clearance with Bucket Dumped, in (mm) .................... 75.5 (1910)
Digging Depth, in (mm) .................... 3 (76)
Reach at Maximum Lift Height, in (mm) .................... 26.7 (670)
Reach with Bucket on Ground, in (mm) .................... 61.9 (1570)
Maximum Dump Angle, deg .................... 41
Maximum Rollback Angle, deg .................... 21
| Operating Specifications |
Lift Capacity to Full Height at Pivot Pin, lbs (kg) .................... 992 (450)
Breakout Force at Pivot Pin, lbs (kg) .................... 1863 (845)
| Cycle Times |
Loader Raise Time, sec .................... 3.6
Loader Lower Time, sec .................... 3.2
Bucket Dump Time, sec .................... 1.7
Bucket Rollback Time, sec .................... 1.6
