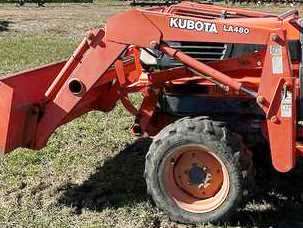

Kubota LA480 Front-End Loader
The
Kubota LA480 loader fits Kubota L2900, L3300 tractors. The loader has double
acting bucket and lift hydraulic cylinders. The Kubota LA480 front-end loader
has a max lift height of 97.7" (2480 mm) at pin and bucket dump clearance of
76.4" (1940 mm).
The lift capacity is 1058 lbs (480 kg) to max height at pin, and boom breakout force is 1951 lbs (884 kg). The rated cycle times are 3.5 seconds raising to maximum height, and 1.8 seconds maximum bucket dumping. The Kubota LA480 loader is equipped with a 60" (1525 mm) standard material bucket with a heaped capacity of 9.9 cu.ft (0.28 m3).
| Compatible Tractor Models |
Tractor Models .................... Kubota L2900, L3300
Front Tyre Size .................... 7.2x16
Rear Tyre Size .................... 11.2x24
Hydraulic Flow, gpm (lpm) .................... 7.0 (26.5)
Maximum Pressure, psi (bar) .................... 2500 (172)
| Loader |
Loader Model .................... Kubota LA480
Leveling System .................... Non-Self Leveling
Attachment Type .................... Pin-On
Lift Cylinder Bore, in (mm) .................... 1.75 (45)
Bucket Cylinder Bore, in (mm) .................... 1.75 (45)
| Bucket |
Width, in (mm) .................... 60 (1525)
Depth, in (mm) .................... 19.1 (485)
Height, in (mm) .................... 21.3 (540)
Bucket Capacity (Struck), cu.ft (m3) .................... 8.1 (0.23)
Bucket Capacity (Heaped), cu.ft (m3) .................... 9.9 (0.28)
Weight, lbs (kg) .................... 181 (82)
| Loader Dimensions |
Maximum Lift Height at Pivot Pin, in (mm) .................... 97.7 (2480)
Clearance with Bucket Dumped, in (mm) .................... 76.4 (1940)
Digging Depth, in (mm) .................... 3.5 (88)
Reach at Maximum Lift Height, in (mm) .................... 26.4 (665)
Reach with Bucket on Ground, in (mm) .................... 61.8 (1565)
Maximum Dump Angle, deg .................... 41
Maximum Rollback Angle, deg .................... 20
| Operating Specifications |
Lift Capacity to Full Height at Pivot Pin, lbs (kg) .................... 1058 (480)
Breakout Force at Pivot Pin, lbs (kg) .................... 1951 (884)
| Cycle Times |
Loader Raise Time, sec .................... 3.5
Loader Lower Time, sec .................... 3.3
Bucket Dump Time, sec .................... 1.8
Bucket Rollback Time, sec .................... 1.7
