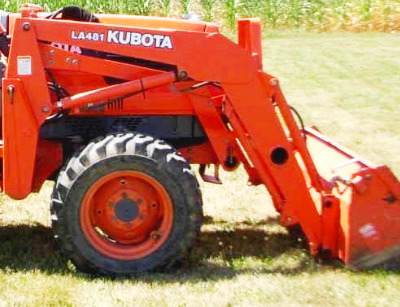

Kubota LA481 Front End Loader
The
Kubota LA481 loader is available for Kubota L2900, L3010, and L3410 tractors.
The loader hydraulic system includes double-acting lifting and bucket hydraulic
cylinders.
The Kubota LA481 front end loader has a lifting capacity (at pivot pin)
of 1058 lbs (479 kg) to full height of 97.2" (2460 mm), and boom
breakout force of 1951 lbs (884 kg). The bucket dump clearance is 76.4"
(1940 mm) at max dump angle of 41 degrees.
The Kubota LA481 loader can be equipped with the following buckets: a
60" (1525 mm) standard material bucket with a heaped capacity of 9.9
cu.ft (0.28 m3), or 66" (1675 mm) standard material bucket with a heaped
capacity of 10.8 cu.ft (0.31 m3).
| Tractor Models |
Kubota L2900, L3010, L3410 |
| Front Tires |
7,2-16 |
| Rear Tires |
12,4-24 |
| Hydraulic System Flow, gpm (lpm) |
7.0 (26.5) |
| 60" Standard Material Bucket |
| Bucket Width, in (mm) |
60 (1525) |
| Length, in (mm) |
22.4 (570) |
| Height, in (mm) |
21.3 (540) |
| Capacity (Struck), cu.ft (m3) |
8.1 (0.23) |
| Capacity (Heaped), cu.ft (m3) |
9.9 (0.28) |
| Weight, lbs (kg) |
181 (82) |
| 66" Standard Material Bucket |
| Bucket Width, in (mm) |
66 (1675) |
| Struck Capacity, cu.ft (m3) |
8.8 (0.25) |
| Heaped Capacity, cu.ft (m3) |
10.8 (0.31) |
| Weight, lbs (kg) |
265 (120) |
| Maximum Lift Height to Pivot Pin, in (mm) |
97.2 (2460) |
| Clearance with Bucket Dumped, in (mm) |
76.4 (1940) |
| Reach at Maximum Lift Height, in (mm) |
21.7 (550) |
| Maximum Dump Angle, degrees |
41 |
| Reach with Bucket on Ground, in (mm) |
61.8 (1560) |
| Maximum Rollback Angle, degrees |
20 |
| Lift Capacity to Max. Height at Pivot Point, lbs (kg) |
1058 (479) |
| Max. Breakout Force at Bucket Pivot Point, lbs (kg) |
1951 (884) |
| Max. Breakout Force at 19.7" (0.5m) from Bucket Pivot Point, lbs (kg) |
1390 (633) |
