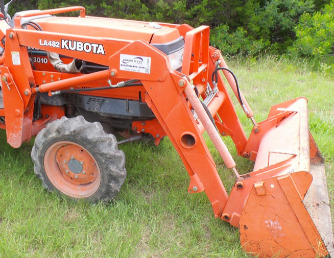

Kubota LA482 Front End Loader

The Kubota LA482 loader is fitted to Kubota L3010, L3410. The loader hydraulic system includes double-acting bucket and lift hydraulic cylinders.

The Kubota LA482 has a lifting capacity (at pin) of 555 kg (1225 lbs) to a maximum height of 2435 mm (95.9 in), boom breakout force of 1286 kg (2830 lbs), and bucket rollback force (max height) of 1375 kg (3025 lbs).

A full dump clearance with a 41-degree maximum dump angle is 1940 mm (76.4 in). The estimated cycle times are 3.4 seconds raising to full height, and 1.5 seconds full bucket dumping. The Kubota LA482 loader is equipped with a 60" (1525 mm) standard material bucket with a rated capacity of 0.28 cu.m (9.9 cu.ft).

Compatible Tractors
Tractor models Kubota L3010, L3410
Wheel base, mm (in) 1670 (65.7)
Front tires 7,2-16
Rear tires 12,4-24
Rated flow, lpm (gpm) 26.4 (7.0)
Maximum pressure, kg/cm2 (psi) 17.2 (2490)

Loader
Loader model Kubota LA482
Boom cylinder bore, mm (in) 45 (1.75)
Boom cylinder stroke, mm (in) 450 (17.72)
Bucket cylinder bore, mm (in) 45 (1.75)
Bucket cylinder stroke, mm (in) 450 (17.72)
Net weight, kg (lbs) 380 (835)

Standard Material Bucket
Width, mm (in) 1525 (60.0)
Depth, mm (in) 520 (20.5)
Height, mm (in) 530 (20.9)
Length, mm (in) 570 (22.5)
Capacity (Struck), m3 (cu.ft.) 0.23 (8.1)
Capacity (Heaped), m3 (cu.ft.) 0.28 (9.9)
Weight, kg (lbs) 96 (212)


Loader Dimensions
Max. lift height (To bucket pivot pin), mm (in) 2435 (95.9)
Max. lift height under level bucket, mm (in) 2290 (90.2)
Clearance with bucket dumped, mm (in) 1940 (76.4)
Reach at max. lift height (Dumping reach), mm (in) 580 (22.8)
Max. dump angle, deg 41
Reach with bucket on ground, mm (in) 1600 (63.0)
Bucket rollback angle, deg 20
Digging depth, mm (in) 65 (2.6)
Overall height in carrying position, mm (in) 1325 (52.2)

Operating Data
Lift capacity to max. height (Bucket bottom mid point), kg (lbs) 480 (1060)
Lift capacity (Bucket pivot pin, max. height), kg (lbs) 555 (1225)
Lift capacity (500 mm forward, max. height), kg (lbs) 410 (905)
Lift capacity (Bucket pivot pin, 1500 mm (59") height), kg (lbs) 750 (1650)
Lift capacity (500 mm forward, 1500 mm height), kg (lbs) 590 (1300)
Breakout force (Bucket pivot pin), kg (lbs) 1286 (2830)
Breakout force (500 mm forward), kg (lbs) 960 (2115)
Bucket rollback force at max. height, kg (lbs) 1375 (3025)
Bucket rollback force at 1.5m (59") height, kg (lbs) 1685 (3710)
Bucket rollback force at ground level, kg (lbs) 1245 (2740)

Cycle Times
Raising time, sec. 3,4
Lowering time, sec. 2,2
Bucket dumping time, sec. 1,5
Bucket rollback time, sec. 2,5
