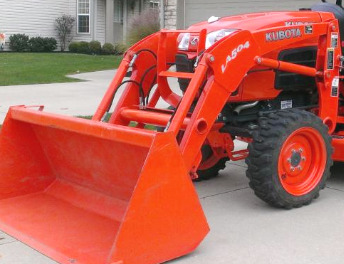

Kubota LA504 Front End Loader

The Kubota LA504 loader is used for Kubota B3200, B3300SU tractors. The loader is equipped with double acting hydraulic lift and bucket cylinders.

The Kubota LA504 loader’s max lift height is 82.6 in (2098 mm) at pin, and clearance with bucket dumped is 65.6 in (1666 mm). The lift capacity is 1065 lbs (483 kg) at full height (pivot pin), and breakout force (bucket on ground) is 2470 lbs (1120 kg).

The raising cycle time is 2.8 seconds from ground line to max height, and bucket dumping time is 2 sec. The Kubota LA504 front end loader is compatible with a 54" (1370 mm) standard material bucket with a rated capacity of 8.1 cu.ft (0.23 m3).

Compatible Tractors
Tractor Models Kubota B3200, B3300SU
Front Tires 7.00x12
Rear Tires 12.4x16
Hydraulic System Flow, gpm (lpm) 6.7 (25.3)
Hydraulic Pressure, bar (psi) 155 (2205)

Loader
Loader Model Kubota LA504
Lift Cylinder Bore, in (mm) 1.77 (45.0)
Lift Cylinder Stroke, in (mm) 14.2 (360)
Bucket Cylinder Bore, in (mm) 1.77 (45.0)
Bucket Cylinder Stroke, in (mm) 13.2 (336)
Weight, lbs (kg) 660 (300)

Standard Material Bucket
Width, in (mm) 54 (1370)
Length, in (mm) 20.9 (530)
Height, in (mm) 20.7 (525)
Capacity (Struck), cu.ft (m3) 6.7 (0.19)
Capacity (Heaped), cu.ft (m3) 8.1 (0.23)
Weight, lbs (kg) 175 (79)


Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 82.6 (2098)
Clearance with Bucket Dumped, in (mm) 65.6 (1666)
Reach at Maximum Lift Height, in (mm) 20.6 (524)
Maximum Dump Angle, degrees 37
Digging Depth, in (mm) 2.3 (59)
Maximum Rollback Angle, degrees 23
Overall Height in Carry Position, in (mm) 44.3 (1126)

Operating Data
Lift Capacity to Max. Height at Pivot Point, lbs (kg) 1065 (483)
Lift Capacity to Max. Height at 0.5m (19.5") from Bucket Pivot Point, lbs (kg) 730 (330)
Breakout Force at Bucket Pivot Point, lbs (kg) 2470 (1120)
Breakout Force at 0.5m (19.5") from Bucket Pivot Point, lbs (kg) 1740 (790)

Cycle Times
Loader Raise, sec. 2,8
Loader Lower, sec. 2,5
Bucket Dump, sec. 2,0
Bucket Rollback, sec. 2,1
