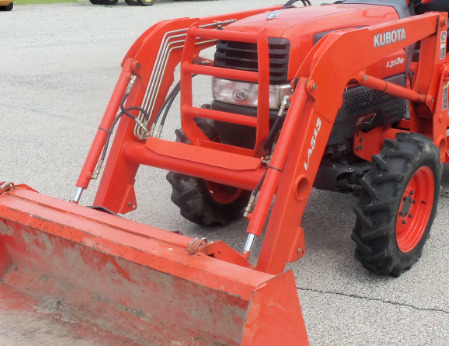

Kubota LA513 Front End Loader

The Kubota LA513 front-end loader fits Kubota L3130, L3430 tractors. The front end loader has double acting hydraulic lift cylinders and bucket cylinders. The front end loader has a lift capacity (at pin) of 1345 lbs (610 kg) to full height of 96.5" (2450 mm), and breakout force of 2160 lbs (980 kg).

The bucket dump clearance is 78.2" (1980 mm) at max dump angle of 40 degrees. The boom raising time is 2.8 seconds from ground line to full height, and bucket dumping time is 1.5 sec. The Kubota LA513 loader is compatible with a 66" (1675 mm) standard material bucket with a heaped capacity of 9.9 cu.ft (0.28 m3).

Compatible Tractors
Tractor Models Kubota L3130, L3430
Front Tires 7.2x16
Rear Tires 12.4x24
Hydraulic System Flow, gpm (lpm) 8.3 (31.4)
Hydraulic Pressure, bar (psi) 180 (2560)

Loader
Loader Model Kubota LA513
Boom Cylinder Bore, in (mm) 1.77 (45.0)
Boom Cylinder Stroke, in (mm) 18.7 (476)
Bucket Cylinder Bore, in (mm) 1.77 (45.0)
Bucket Cylinder Stroke, in (mm) 18.7 (476)
Weight, lbs (kg) 870 (395)

Standard Material Bucket
Width, in (mm) 66 (1675)
Depth, in (mm) 18 (458)
Height, in (mm) 22.1 (562)
Length, in (mm) 19.8 (502)
Capacity (Struck), cu.ft (m3) 8.1 (0.23)
Capacity (Heaped), cu.ft (m3) 9.9 (0.28)
Weight, lbs (kg) 245 (110)


Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 96.5 (2450)
Clearance with Bucket Dumped, in (mm) 78.2 (1980)
Reach at Maximum Lift Height, in (mm) 20.7 (520)
Maximum Dump Angle, degrees 40
Digging Depth, in (mm) 5.0 (126)
Maximum Rollback Angle, degrees 30

Operating Data
Lift Capacity to Max. Height at Pivot Point, lbs (kg) 1345 (610)
Lift Capacity to Max. Height at 0.5m (19.5") from Pivot Point, lbs (kg) 1003 (455)
Breakout Force at Pivot Point, lbs (kg) 2160 (980)
Breakout Force at 0.5m (19.5") from Pivot Point, lbs (kg) 1660 (755)

Cycle Times
Loader Raise, sec. 2,8
Loader Lower, sec. 2,3
Bucket Dump, sec. 1,5
Bucket Rollback, sec. 1,7
