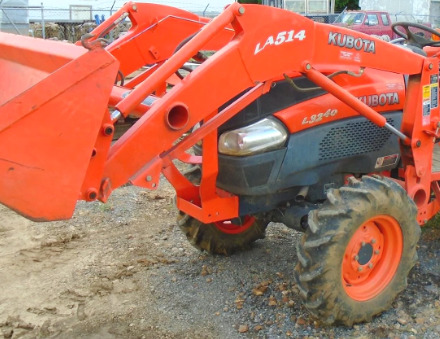

Kubota LA514 Front End Loader

The Kubota LA514 loader is compatible with Kubota L3240, L3540 tractors. The loader has double acting lifting and bucket hydraulic cylinders. The loader has a max lift height of 2449 mm (96.4 inches) at pin and bucket dump clearance of 1987 mm (78.2 inches).

The lifting capacity is 613 kg (1351 lbs) at max height (bucket pin), and boom breakout force is 1286 kg (2830 lbs). The raising time is 2.7 sec from ground line to full height, and bucket dumping time is 1.3 seconds. The Kubota LA514 front-end loader is equipped with a 66" (1675 mm) standard material bucket with a heaped capacity of 9.9 cu.ft (0.28 m3).

Compatible Tractors
Tractor models Kubota L3240, L3540
Wheel base, mm (in) 1805 (71.1)
Front tires 7,0-16
Rear tires 12,4-24
Rated flow, lpm (gpm) 31.5 (8.3)
Maximum pressure, kg/cm2 (psi) 180 (2560)

Loader
Loader model LA514
Net weight, kg (lbs) 405 (893)
Boom cylinder bore, mm (in) 45 (1.77)
Boom cylinder stroke, mm (in) 476 (18.7)
Bucket cylinder bore, mm (in) 45 (1.77)
Bucket cylinder stroke, mm (in) 476 (18.7)

Standard Material Bucket
Width, mm (in) 1675 (66)
Depth, mm (in) 458 (18)
Height, mm (in) 562 (22.1)
Length, mm (in) 502 (19.8)
Bucket Capacity (Struck), m3 (cu.ft.) 0.23 (8.1)
Bucket Capacity (Heaped), m3 (cu.ft.) 0.28 (9.9)
Weight, kg (lbs) 112 (247)


Loader Dimensions
Max. lift height (To bucket pivot pin), mm (in) 2449 (96.4)
Max. lift height under level bucket, mm (in) 2275 (89.6)
Clearance with bucket dumped, mm (in) 1987 (78.2)
Reach at max. lift height (Dumping reach), mm (in) 593 (23.3)
Max. dump angle, deg 41
Reach with bucket on ground, mm (in) 1568 (61.7)
Bucket rollback angle, deg 30
Digging depth, mm (in) 126 (5.0)
Overall height in carrying position, mm (in) 1285 (50.6)

Operating Data
Lift capacity to max. height (Bucket bottom mid point), kg (lbs) 510 (1124)
Lift capacity (Bucket pivot pin, max. height), kg (lbs) 613 (1351)
Lift capacity (500 mm forward, max. height), kg (lbs) 463 (1020)
Lift capacity (Bucket pivot pin, 1500 mm (59 in.) height), kg (lbs) 798 (1759)
Lift capacity (500 mm forward, 1500 mm height), kg (lbs) 633 (1395)
Breakout force (Bucket pivot pin), kg (lbs) 1286 (2830)
Breakout force (500 mm forward), kg (lbs) 978 (2151)
Bucket rollback force at max. height, kg (lbs) 1108 (2438)
Bucket rollback force at 1500 mm (5.9 in.), kg (lbs) 1410 (3104)
Bucket roll-back force at ground level, kg (lbs) 1215 (2672)

Cycle Times
Raising time, sec. 2,7
Lowering time, sec. 2,2
Bucket dumping time, sec. 1,3
Bucket rollback time, sec. 1,6
