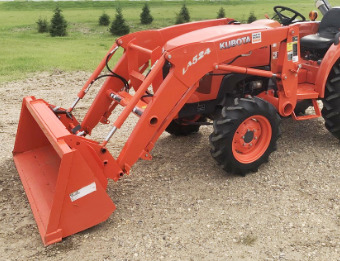

Kubota LA524 Front End Loader

The Kubota LA524 mechanical self-leveling front end loader is designed for Kubota L3200, L3800 tractors. The front end loader has double-acting bucket and boom hydraulic cylinders.

The Kubota LA524 loader has a maximum lift height of 94.3 inches (2394 mm) at pin and clearance with bucket dumped of 71.2 inches (1795 mm).

The lifting capacity is 1130 lbs (513 kg) at full height (pivot pin), and breakout force is 2455 lbs (1116 kg).

The estimated cycle times are 3.3 seconds raising to maximum height, and 1.4 seconds full bucket dumping. The 5 foot standard material bucket has a nominal heaped capacity of 9.2 cu.ft (0.26 cu.m).

Compatible Tractors
Tractor Models Kubota L3200, L3800
Front Tires 7,2-16
Rear Tires 11,2-24
Rated Flow, lpm (gpm) 24.0 (6.5)

Loader
Loader Model Kubota LA524
Leveling System Mechanical self-leveling
2 Lever Quick Coupler Standard
Weight (w/o Bucket), lb. (kg) 860 (391)

Standard Material Bucket
Bucket Width, in. (mm) 60 (1520)
Bucket Capacity (Heaped), cu.ft.(m3) 9.2 (0.26)
Bucket Weight, lb. (kg) 200 (91)


Loader Dimensions
Maximum Lift Height (Pivot pin), in. (mm) 94.3 (2394)
Clearance with Bucket Dumped, in. (mm) 71.2 (1795)
Reach At Maximum Lift Height, in. (mm) 23.4 (589)
Maximum Dump Angle, degrees 40
Reach with Bucket on Ground, in. (mm) 71.3 (1798)
Maximum Rollback Angle, degrees 45
Digging Depth, in. (mm) 11.4 (288)
Overall Height in Carry Position, in. (mm) 56.6 (1427)

Operating Data
Lift Capacity to Maximum Height at Pivot Pin, lbs. (kg) 1130 (513)
Lift Capacity to Maximum Height (500 mm forward Pivot Pin), lbs. (kg) 880 (400)
Lift Capacity to 1500 mm (59-in) Height at Pivot Pin, lbs. (kg) 1485 (675)
Lift Capacity to 1500 mm (59-in) Height (500 mm forward Pivot Pin), lbs. (kg) 1180 (536)
Breakout Force at Pivot Pin, lbs. (kg) 2455 (1116)
Breakout Force (500 mm forward Pivot Pin), lbs. (kg) 1870 (850)
Bucket Rollback Force at Maximum Height, lbs. (kg) 1182 (537)
Bucket Rollback Force at 1500 mm (59-in) Lift Height, lbs. (kg) 1780 (807)
Bucket Rollback Force at Ground Level, lbs. (kg) 2040 (927)

Cycle Times
Raising Time, second 3,3
Lowering time, second 2,1
Bucket Rollback Time, second 1,7
Bucket Dumping Time, second 1,4
