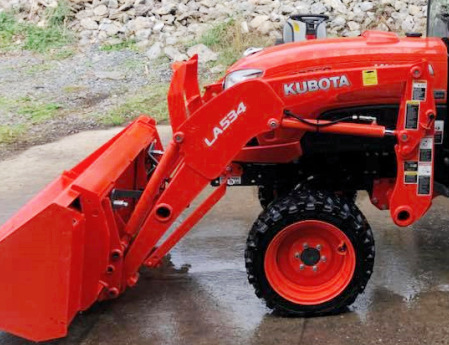

Kubota LA534 Front End Loader
The
Kubota LA534 front end loader is used for Kubota B2650, B3350 tractors. The
LA534 front end loader hydraulic system includes double-acting hydraulic bucket
and lifting cylinders.
The loader has a lift capacity (at pivot pin) of 1145 lbs (520 kg) to
max height of 84.6 in (2140 mm), and boom breakout force of 2320 lbs
(1050 kg). The bucket dump clearance is 67.4 in (1710 mm) at max dump
angle of 31 degrees. The rated cycle times are 3 seconds raising to
maximum height, and 1.9 seconds maximum bucket dumping.
The Kubota LA534 loader is equipped with the following buckets: 54"
standard material bucket with a rated capacity of 8.1 cu.ft (0.23 cu.m),
and 60" light material bucket with a rated capacity of 9.9 cu.ft (0.28
cu.m).
Tractor Models |
Kubota B2650, B3350 |
Front Tires |
7.00x12 |
Rear Tires |
12.4x16 |
Hydraulic System Flow, gpm (lpm) |
5.0 (18.9) |
Hydraulic Pressure, bar (psi) |
140 (2000) |
Width, in (mm) |
54 (1370) |
Length, in (mm) |
20.9 (530) |
Height, in (mm) |
20.7 (525) |
Capacity (Struck), cu.ft (m3) |
6.7 (0.19) |
Capacity (Heaped), cu.ft (m3) |
8.1 (0.23) |
Weight, lbs (kg) |
175 (79) |
Width, in (mm) |
60 (1525) |
Depth, in (mm) |
22.4 (570) |
Height, in (mm) |
21.3 (540) |
Length, in (mm) |
8.1 (0.23) |
Capacity (Struck), cu.ft (m3) |
9.9 (0.28) |
Capacity (Heaped), cu.ft (m3) |
182 (82) |
Maximum Lift Height to Pivot Pin, in (mm) |
84.6 (2140) |
Clearance with Bucket Dumped, in (mm) |
67.4 (1710) |
Reach at Maximum Lift Height, in (mm) |
23.0 (590) |
Maximum Dump Angle, degrees |
31 |
Digging Depth, in (mm) |
5.0 (126) |
Maximum Rollback Angle, degrees |
29 |
Lift Capacity to Max. Height at Pivot Point, lbs (kg) |
1145 (520) |
Lift Capacity to Max. Height at 0.5m (19.5") from Bucket Pivot Point, lbs (kg) |
825 (375) |
Breakout Force at Bucket Pivot Point, lbs (kg) |
2320 (1050) |
Breakout Force at 0.5m (19.5") from Bucket Pivot Point, lbs (kg) |
1690 (767) |
Loader Raise, sec. |
3,0 |
Loader Lower, sec. |
3,5 |
Bucket Dump, sec. |
1,9 |
Bucket Rollback, sec. |
2,2 |
