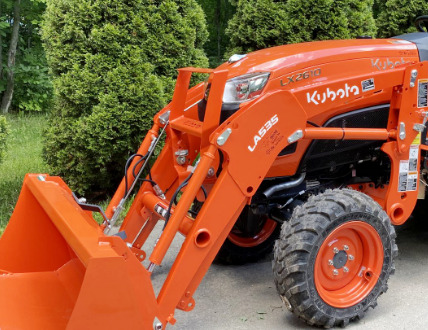

Kubota LA535 Front End Loader

The Kubota LA535 NSL front end loader is compatible with Kubota LX2610, LX3310 tractors. The front end loader has double acting hydraulic bucket and boom cylinders. The loader has a max lift height of 84 inches (2130 mm) at pin and bucket dump clearance of 66.8 inches (1690 mm). The lift capacity is 1065 lbs (484 kg) to maximum lift height at pin, and breakout force (bucket on ground) is 2245 lbs (1020 kg).

The raising cycle time is 3.0 sec from ground line to maximum height, and bucket dumping time is 1.9 seconds. Compatible buckets for Kubota LA535 loader: a 54" (1370 mm) standard material bucket with heaped capacity of 8.1 cu.ft (0.23 cu.m), and 60" (1525 mm) standard material bucket with heaped capacity of 9.9 cu.ft (0.28 cu.m).

Compatible Tractors
Tractor Model Kubota LX2610, LX3310
Front Tire Size 23x8.50-14
Rear Tire Size 12.4x16
Pump Flow, gpm (lpm) 5.0 (19.0)
Hydraulic Pressure, bar (psi) 145 (2100)

Loader
Loader Model Kubota LA535
Leveling System Non self leveling (NSL)
Weight, lbs (kg) 565 (255)

54" Standard Material Bucket
Bucket Type Pin-on/Quick attach
Width, in (mm) 54 (1370)
Struck Capacity, cu.ft (m3) 6.7 (0.19)
Heaped Capacity, cu.ft (m3) 8.1 (0.23)
Weight, lbs (kg) 175 (79)

60" Standard Material Bucket
Bucket Type Pin-on/Quick attach
Width, in (mm) 60 (1525)
Struck Capacity, cu.ft (m3) 8.1 (0.23)
Heaped Capacity, cu.ft (m3) 9.9 (0.28)
Weight, lbs (kg) 182 (82)


Loader Dimensions
Maximum Lift Height at Pin, in (mm) 84 (2130)
Clearance with Bucket Dumped, in (mm) 66.8 (1690)
Reach at Maximum Height, in (mm) 23 (590)
Maximum Dump Angle, deg 36
Bucket Rollback Angle, deg 30
Digging Depth, in (mm) 4 (102)

Operating Data
Lift Capacity to Full Height at Pin, lbs (kg) 1065 (484)
Lift Capacity to Full Height at 19.7" (0.5m) ahead of Pin, lbs (kg) 770 (350)
Breakout Force at Pin, lbs (kg) 2245 (1020)
Breakout Force at 19.7" (0.5m) ahead of Pin, lbs (kg) 1635 (740)

Cycle Times
Raising Time, sec 3.0
Lowering Time, sec 3.5
Bucket Dumping Time 1.9
Bucket Rollback Time 2.2
