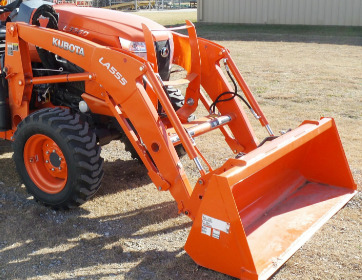

Kubota LA555 Front End Loader

The Kubota LA555 loader fits Kubota L3560 tractor. The front end loader hydraulic system includes double-acting lift and bucket hydraulic cylinders.

The loader’s maximum lift height is 96.4 in (2448 mm) at pin, and clearance with bucket dumped is 75.9 in (1928 mm). The lifting capacity is 1190 lb (540 kg) to maximum lift height at pin, and boom breakout force is 2677 lb (1217 kg). The estimated cycle times are 2.7 seconds lifting to maximum height, and 1.3 seconds to full bucket dump.

The Kubota LA555 loader is compatible with a 66 in (1675 mm) quick attach standard material bucket with a heaped capacity of 9.9 cu.ft (0.28 m3).

Compatible Tractors
Tractor Models Kubota L3560
Wheel base, in (mm) 71.1 (1800)
Front tires 7,0-16
Rear tires 12,4-24
Rated flow, L/min 31.0
Maximum pressure, psi (MPa) 2560 (17.7)

Loader
Model Kubota LA555 Loader
Boom Cylinder Bore, in (mm) 1.77 (45)
Boom Cylinder Stroke, in (mm) 18.7 (476)
Bucket Cylinder Bore, in (mm) 1.77 (45)
Bucket Cylinder Stroke, in (mm) 18.7 (476)
Net weight (approximate), lb (kg) 1003 (455)

Standard Material Bucket
Type Quick attach
Bucket Capacity (struck), cu.ft (m3) 8.1 (0.23)
Bucket Capacity (heaped), cu.ft (m3) 9.9 (0.28)
Width, in (mm) 66.0 (1675)
Depth, in (mm) 18.0 (458)
Overall height, in (mm) 22.1 (562)
Length, in (mm) 21.4 (544)
Weight, lb (kg) 265 (120)


Loader Dimensions
Max. Lift height to bucket pivot pin, in (mm) 96.4 (2448)
Max. Lift height under level bucket, in (mm) 89.6 (2277)
Clearance with bucket dumped, in (mm) 75.9 (1928)
Reach at max. Lift height, in (mm) 28.4 (721)
Max. Dump angle, degrees 40
Reach with bucket on ground, in (mm) 66.6 (1691)
Bucket rollback angle, degrees 30
Digging depth, in (mm) 4.9 (124)
Overall height in carrying position, in (mm) 52.7 (1338)

Operating Data
Lift Capacity (Bucket pivot pin, max height), lb (kg) 1190 (540)
Lift Capacity (500 mm forward, max height, lb (kg) 899 (408)
Lift Capacity (Bucket pivot pin, 1.5 M height), lb (kg) 1603 (727)
Lift Capacity (500 mm forward, 1500 mm height), lb (kg) 1270 (576)
Breakout Force (Bucket pivot pin), lbs (kg) 2677 (1217)
Breakout Force (500 mm forward), lbs (kg) 2030 (923)
Bucket rollback force at max. height, lbs (kg) 2111 (960)
Bucket rollback force at 1.5 M, lbs (kg) 2706 (1230)
Bucket rollback force at ground level, lbs (kg) 2317 (1053)

Cycle Times
Raising time, second 2,7
Lowering time, second 2,2
Bucket dumping time, second 1,3
Bucket rollback time, second 1,6
