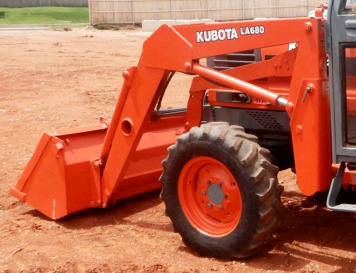

Kubota LA680 Front End Loader

The Kubota LA680 loader is designed to fit Kubota L3600, L4200 tractors. The LA680 front end loader has double acting boom and bucket hydraulic cylinders. The 60-in standard material bucket has a weight of 212 lb (96 kg) and nominal heaped capacity of 9.9 cubic feet (0.28 m3). The weight of 66-in standard material bucket is 243 lb (110 kg), and heaped capacity is 10.9 cubic feet (0.31 m3).

The Kubota LA680 loader has a lifting capacity (at pin) of 1500 lb (680 kg) to a max height of 102.4 inches (2600 mm), and breakout force (bucket on ground) of 2560 lb (1160 kg).

A full dump clearance with a 40-degree max dump angle is 80.3 inches (2030 mm). The estimated cycle times are 3.8 seconds lifting to maximum height, and 1.7 seconds maximum bucket dumping.

Compatible Tractors
Tractor Models Kubota L3600, L4200
Front Tires 8.3x16
Rear Tires 13.6x24
Hydraulic System Flow, gpm (lpm) 7.8 (29.5)
Maximum pressure, Bar (psi) 175 (2500)

60" Standard Material Bucket
Width, in (mm) 60 (1525)
Depth, in (mm) 20.5 (520)
Height, in (mm) 20.9 (530)
Length, in (mm) 22.5 (570)
Capacity (Struck), cu.ft (m3) 8.1 (0.23)
Capacity (Heaped), cu.ft (m3) 9.9 (0.28)
Weight, lbs (kg) 212 (96)

66" Standard Material Bucket
Width, in (mm) 66 (1675)
Depth, in (mm) 21.5 (545)
Height, in (mm) 20.3 (515)
Length, in (mm) 25.5 (595)
Capacity (Struck), cu.ft (m3) 8.8 (0.25)
Capacity (Heaped), cu.ft (m3) 10.9 (0.31)
Weight, lbs (kg) 243 (110)


Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 102.4 (2600)
Clearance with Bucket Dumped, in (mm) 80.3 (2030)
Reach at Maximum Lift Height, in (mm) 23.4 (590)
Maximum Dump Angle, degrees 40
Reach with Bucket on Ground, in (mm) 66.5 (1680)
Maximum Rollback Angle, degrees 23
Maximum Digging Depth, in (mm) 3.7 (95)
Height in Carrying Position, in (mm) 54.3 (1380)

Operating Data
Lift Capacity to Max. Height at Pivot Point, lbs (kg) 1500 (680)
Lift Capacity to Max. Height, 19.7" (500 mm) Ahead of Pivot Point, lbs (kg) 1070 (490)
Breakout Force at Bucket Pivot Point, lbs (kg) 2560 (1160)
Breakout Force at 19.7" (500 mm) Ahead of Pivot Point, lbs (kg) 1830 (830)

Cycle Times
Raising Time, sec 3,8
Lowering Time, sec 2,3
Bucket Dumping Time, sec 1,7
Bucket Rollback Time, sec 2,4
