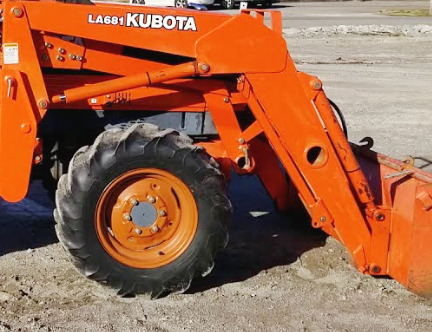

Kubota LA681 Front End Loader

The Kubota LA681 front end loader is fitted to Kubota L4310, L3710 tractors. The front end loader has double acting boom and bucket hydraulic cylinders. The loader’s max lift height is 102.4" (2600 mm) at pin, and bucket dump clearance is 80.3" (2030 mm).

The reach at maximum lift height with bucked dumped is 23.4" (590 mm). The lifting capacity is 1499 lbs (679 kg) at maximum height (bucket pin), and bucket's breakout force is 2557 lbs (1159 kg).

The Kubota LA681 loader is compatible with a 60" (1525 mm) standard material bucket with a heaped capacity of 9.2 cu.ft (0.26 m3), or 66" (1675 mm) standard material bucket with a heaped capacity of 9.9 cu.ft (0.28 m3).

Compatible Tractors
Tractor Models Kubota L4310, L3710
Front Tires 8,3-16
Rear Tires 14,9-24
Hydraulic System Flow, gpm (lpm) 7.8 (29.5)

60" Standard Material Bucket
Width, in (mm) 60 (1525)
Struck Capacity, cu.ft (m3) 7.8 (0.22)
Heaped Capacity, cu.ft (m3) 9.2 (0.26)
Weight, lbs (kg) 181 (82)

66" Standard Material Bucket
Width, in (mm) 66 (1675)
Struck Capacity, cu.ft (m3) 8.1 (0.23)
Heaped Capacity, cu.ft (m3) 9.9 (0.28)
Weight, lbs (kg) 265 (120)


Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 102.4 (2600)
Clearance with Bucket Dumped, in (mm) 80.3 (2030)
Reach at Maximum Lift Height, in (mm) 23.4 (590)
Maximum Dump Angle, degrees 40
Reach with Bucket on Ground, in (mm) 66.5 (1680)
Maximum Rollback Angle, degrees 23

Operating Data
Lift Capacity to Max. Height at Pivot Point, lbs (kg) 1499 (679)
Max. Breakout Force at Bucket Pivot Point, lbs (kg) 2557 (1159)
