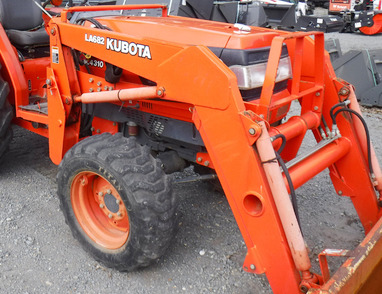

Kubota LA682 Front End Loader
The
Kubota LA682 front-end loader fits Kubota L3710, L4310 tractors. The loader has
double acting bucket and lifting hydraulic cylinders. The loader has a lift
capacity (at bucket pin) of 1780 lbs (810 kg) to 100.8" (2560 mm) max height and
a bucket's breakout force of 3430 lbs (1560 kg).
The bucket dump clearance with a 40-degree maximum dump angle is 80.3"
(2040 mm). The raising cycle time is 3.8 seconds from ground line to max
height, and bucket dump time is 1.7 seconds. The Kubota LA682 loader is
equipped with a 60" (1525 mm) standard material bucket with a heaped
capacity of 10.9 cu.ft (0.31 m3).
Tractor models |
Kubota L3710, L4310 |
Wheel base, mm (in) |
1805 (71.1) |
Front tires |
8,3-16 |
Rear tires |
14,9-24 |
Rated flow, lpm (gpm) |
29.5 (7.8) |
Maximum pressure, kg/cm2 (psi) |
17.2 (2490) |
Loader model |
LA682 |
Net weight, kg (lbs) |
440 (970) |
Boom cylinder bore, mm (in) |
50 (2.00) |
Boom cylinder stroke, mm (in) |
485 (13.10) |
Bucket cylinder bore, mm (in) |
50 (2.00) |
Bucket cylinder stroke, mm (in) |
450 (17.72) |
Width, mm (in) |
1525 (60.0) |
Depth, mm (in) |
570 (22.4) |
Height, mm (in) |
530 (20.9) |
Length, mm (in) |
620 (24.4) |
Bucket Capacity (Struck), m3 (cu.ft.) |
0.25 (8.8) |
Bucket Capacity (Heaped), m3 (cu.ft.) |
0.31 (10.9) |
Weight, kg (lbs) |
112 (247) |
Max. lift height (To bucket pivot pin), mm (in) |
2560 (100.8) |
Max. lift height under level bucket, mm (in) |
2415 (95.1) |
Clearance with bucket dumped, mm (in) |
2040 (80.3) |
Reach at max. lift height (Dumping reach), mm (in) |
625 (24.6) |
Max. dump angle, deg |
40 |
Reach with bucket on ground, mm (in) |
1690 (66.5) |
Bucket roll-back angle, deg |
23 |
Digging depth, mm (in) |
95 (3.7) |
Overall height in carrying position, mm (in) |
1380 (54.3) |
Lift capacity to max. height (Bucket bottom mid point), kg (lbs) |
680 (1500) |
Lift capacity (Bucket pivot pin, max. height), kg (lbs) |
810 (1780) |
Lift capacity (500 mm forward, max. height), kg (lbs) |
610(1340) |
Lift capacity (Bucket pivot pin, 1500 mm (59 in.) height), kg (lbs) |
1020 (2250) |
Lift capacity (500 mm forward, 1500 mm height), kg (lbs) |
815 (1800) |
Breakout force (Bucket pivot pin), kg (lbs) |
1560 (3430) |
Breakout force (500 mm forward), kg (lbs) |
1195 (2630) |
Bucket roll-back force at max. height, kg (lbs) |
1605 (3530) |
Bucket roll-back force at 1.5M (5.9 in.), kg (lbs) |
1960 (4310) |
Bucket roll-back force at ground level, kg (lbs) |
1477 (3250) |
Raising time, sec. |
3,8 |
Lowering time, sec. |
2,3 |
Bucket dumping time, sec. |
1,7 |
Bucket rollback time, sec. |
2,4 |
