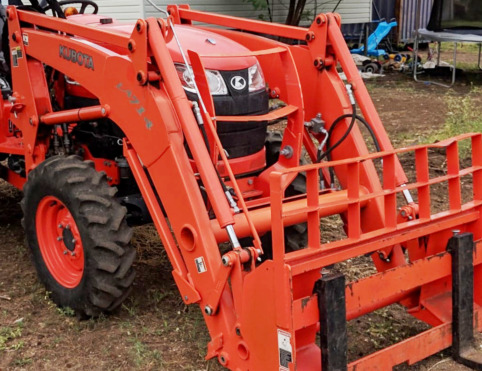

Kubota LA714 Front End Loader

The Kubota LA714 front end loader is designed for Kubota L4240, L4600 tractors. The LA714 front end loader has double-acting hydraulic bucket and lift cylinders.

The 6 foot standard material bucket has a rated capacity of 13.1 cubic feet. The light material bucket has a rated capacity of 16 cubic feet and width of 72 inches.

The Kubota LA714 front end loader has a lift capacity of 1867 lbs (at bucket pin) to max height of 102.2 inches, and breakout force (bucket on ground) is 3400 lbs.

The clearance with bucket dumped is 78.5 inches at maximum dump angle of 45 degrees. The estimated cycle times are 3 seconds lifting to maximum height, and 1.3 seconds maximum bucket dumping.

Compatible Tractors
Tractor Models Kubota L4240, L4600
Front Tires 8.3x16
Rear Tires 14.9x24
Hydraulic System Flow, gpm (lpm) 8.4 (31.8)
Hydraulic Pressure, bar (psi) 185 (2630)

Loader
Loader Model Kubota LA714
Boom Cylinder Bore, in (mm) 1.97 (50.0)
Boom Cylinder Stroke, in (mm) 19.8 (502)
Bucket Cylinder Bore, in (mm) 1.97 (50.0)
Bucket Cylinder Stroke, in (mm) 18.3 (465)
Weight, lbs (kg) 1100 (500)

Standard Material Bucket
Width, in (mm) 72 (1830)
Depth, in (mm) 21.5 (247)
Height, in (mm) 22.4 (570)
Length, in (mm) 25.7 (652)
Capacity (Struck), cu.ft (m3) 10.9 (0.31)
Capacity (Heaped), cu.ft (m3) 13.1 (0.37)
Weight, lbs (kg) 320 (146)

Light Material Bucket
Width, mm (in) 72 (1830)
Depth, mm (in) 23.9 (607)
Height, mm (in) 22.4 (570)
Length, mm (in) 27.2 (691)
Capacity (Struck), m3 (cu.ft) 12.7 (0.36)
Capacity (Heaped), m3 (cu.ft) 16.0 (0.45)
Weight, kg (lbs) 300 (136)


Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 102.2 (2595)
Clearance with Bucket Dumped, in (mm) 78.5 (1993)
Reach at Maximum Lift Height, in (mm) 21.9 (557)
Maximum Dump Angle, degrees 45
Reach With Bucket On Ground, in (mm) 69.4 (1763)
Digging Depth, in (mm) 4.8 (121)
Maximum Rollback Angle, degrees 41
Overall Height in Carry Position, in (mm) 54.3 (1380)

Operating Data
Lift Capacity to Max. Height at Pivot Point, lbs (kg) 1867 (847)
Lift Capacity to Max. Height at 0.5m (19.5") from Bucket Pivot Point, lbs (kg) 1415 (642)
Lift Capacity to Max. Height (Bucket Center), lbs (kg) 1587 (720)
Breakout Force at Bucket Pivot Point, lbs (kg) 3400 (1550)

Cycle Times
Loader Raise, sec. 3,0
Loader Lower, sec. 2,0
Bucket Dump, sec. 1,3
Bucket Rollback, sec. 1,8
