Kubota LA723 Front End Loader
The

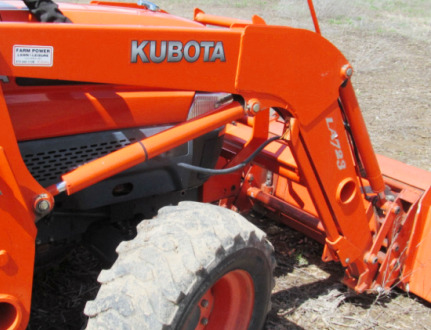

Kubota LA723 front end loader was designed for Kubota L3830 tractor. The loader
has double acting hydraulic lifting and bucket cylinders. The loader has a
lifting capacity (at pin) of 1870 lbs (848 kg) to full height of 102.4 in (2600
mm) and breakout force of 2605 lbs (1181 kg).
The bucket dump clearance is 80.3 in (2030 mm) at maximum dump angle of
45 degrees. The rated cycle times are 3.3 seconds lifting to maximum
height, and 1.5 seconds maximum bucket dumping.
The Kubota LA723 loader is equipped with a 72" (1830 mm) standard
material bucket with heaped capacity of 13.1 cu.ft (0.37 cu.m).
Tractor Models |
Kubota L3830 |
Front Tires |
8.3x16 |
Rear Tires |
14.9x24 |
Hydraulic System Flow, gpm (lpm) |
8.3 (31.4) |
Loader Model |
LA723 |
Boom Cylinder Bore, in (mm) |
1.97 (50) |
Boom Cylinder Stroke, in (mm) |
19.8 (502) |
Bucket Cylinder Bore, in (mm) |
1.97 (50) |
Bucket Cylinder Stroke, in (mm) |
18.3 (465) |
Weight, lbs (kg) |
1100 (500) |
Width, in (mm) |
72 (1830) |
Depth, in (mm) |
21.5 (547) |
Height, in (mm) |
22.4 (570) |
Length, in (mm) |
25.7 (652) |
Struck Capacity, cu.ft (m3) |
10.9 (0.31) |
Heaped Capacity, cu.ft (m3) |
13.1 (0.37) |
Weight, lbs (kg) |
300 (135) |
Maximum Lift Height to Pivot Pin, in (mm) |
102.4 (2600) |
Clearance with Bucket Dumped, in (mm) |
80.3 (2030) |
Reach at Maximum Lift Height, in (mm) |
20.9 (530) |
Maximum Dump Angle, degrees |
45 |
Maximum Rollback Angle, degrees |
40 |
Lift Capacity to Max. Height at Pivot Point, lbs (kg) |
1870 (848) |
Lift Capacity to Max. Height at 500 mm from Bucket Pivot Point, lbs (kg) |
1400 (635) |
Max. Breakout Force at Bucket Pivot Point, lbs (kg) |
2605 (1181) |
Max. Breakout Force at 500 mm from Bucket Pivot Point, lbs (kg) |
2005 (910) |
Raising time, sec. |
3,3 |
Lowering time, sec. |
2,2 |
Bucket dumping time, sec. |
1,5 |
Bucket rollback time, sec. |
1,9 |
