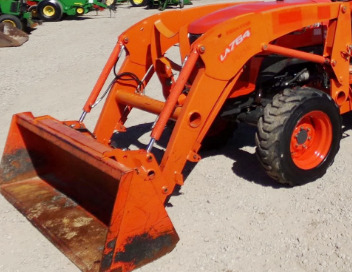

Kubota LA764 Front End Loader

The Kubota LA764 loader is designed for Kubota L4600 tractor. The front end loader has double acting lifting and bucket hydraulic cylinders. The loader has a lifting capacity (at bucket pin) of 1684 lbs (764 kg) to full height of 105.2" (2673 mm) and boom breakout force of 2443 lbs (1110 kg).

A full dump clearance with a 41-degree maximum dump angle is 81.2" (2063 mm). The estimated cycle times are 3.5 seconds lifting to full height, and 1.7 seconds full bucket dumping.

The Kubota LA764 loader is compatible with a 66" (1675 mm) standard material bucket with heaped capacity of 9.9 cu.ft (0.28 cu.m), or 72" (1830 mm) standard material bucket with heaped capacity of 13.1 cu.ft (0.37 cu.m).

Compatible Tractors
Tractor Models Kubota L4600
Front Tires 8.3x16
Rear Tires 14.9x24
Hydraulic System Flow, gpm (lpm) 8.4 (31.8)
Hydraulic Pressure, bar (psi) 180 (2600)

66" Standard Material Bucket
Width, in (mm) 66 (1675)
Depth, in (mm) 18 (458)
Height, in (mm) 22.1 (562)
Length, in (mm) 19.8 (502)
Capacity (Struck), cu.ft (m3) 8.1 (0.23)
Capacity (Heaped), cu.ft (m3) 9.9 (0.28)
Weight, lbs (kg) 245 (110)

72" Standard Material Bucket
Width, in (mm) 72 (1830)
Depth, in (mm) 21.5 (247)
Height, in (mm) 22.4 (570)
Length, in (mm) 25.7 (652)
Capacity (Struck), cu.ft (m3) 10.9 (0.31)
Capacity (Heaped), cu.ft (m3) 13.1 (0.37)
Weight, lbs (kg) 320 (146)


Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 105.2 (2673)
Clearance with Bucket Dumped, in (mm) 81.2 (2063)
Reach at Maximum Lift Height, in (mm) 22.5 (571)
Maximum Dump Angle, degrees 41
Reach With Bucket On Ground, in (mm) 70.2 (1783)
Digging Depth, in (mm) 6.1 (156)
Maximum Rollback Angle, degrees 27
Overall Height in Carry Position, in (mm) 54.6 (1387)

Operating Data
Lift Capacity to Max. Height at Pivot Point, lbs (kg) 1684 (764)
Lift Capacity to Max. Height at 0.5m (19.5") from Bucket Pivot Point, lbs (kg) 1263 (573)
Lift Capacity to 1.5m (59") Height at Pivot Point, lbs (kg) 2154 (977)
Lift Capacity to 1.5m (59") Height at 0.5m (19.5") from Bucket Pivot Point, lbs (kg) 1726 (783)
Breakout Force at Bucket Pivot Point, lbs (kg) 2443 (1110)
Breakout Force at 0.5m (19.5") from Bucket Pivot Point, lbs (kg) 1800 (820)

Cycle Times
Loader Raise, sec. 3,5
Loader Lower, sec. 2,3
Bucket Dump, sec. 1,7
Bucket Rollback, sec. 2,2
