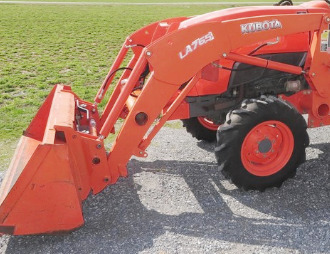

Kubota LA765 Front End Loader

The Kubota LA765 loader is fitted to Kubota L4701 tractor. The loader is equipped with double acting lifting cylinders and double acting bucket cylinders. The Kubota LA765 front end loader has a lift capacity (at pin) of 764 kg (1684 lb) to maximum height of 2673 mm (105.2"), and bucket's breakout force of 1433 kg (3153 lb).

A full dump clearance with a 41-degree maximum dump angle is 2063 mm (81.2"). The rated cycle times are 4 seconds raising to maximum height, and 1.6 seconds full bucket dumping.

The Kubota LA765 is compatible with 6-ft standard material or heavy-duty material buckets with a heaped capacity of 0.37 cu.m (13.1 cu.ft), or 6-ft light material bucket with a heaped capacity of 0.45 cu.m (16 cu.ft).

Compatible Tractors
Tractor Models Kubota L4701
Front Tires 9.5R16
Rear Tires 14.9R26
Hydraulic System Flow, gpm (lpm) 9.5 (36.0)

Standard Material Bucket
Width, mm (in) 1830 (72)
Depth, mm (in) 547 (21.5)
Height, mm (in) 570 (22.4)
Length, mm (in) 630 (24.8)
Capacity (Struck), m3 (cu.ft) 0.31 (10.9)
Capacity (Heaped), m3 (cu.ft) 0.37 (13.1)
Weight, kg (lbs) 150 (331)

Heavy-Duty Material Bucket
Width, mm (in) 1830 (72)
Depth, mm (in) 477 (18.8)
Height, mm (in) 608 (23.9)
Length, mm (in) 610 (24)
Capacity (Struck), m3 (cu.ft) 0.31 (10.9)
Capacity (Heaped), m3 (cu.ft) 0.37 (13.1)
Weight, kg (lbs) 180 (397)

Light Material Bucket
Width, mm (in) 1830 (72)
Depth, mm (in) 607 (23.9)
Height, mm (in) 570 (22.4)
Length, mm (in) 691 (27.2)
Capacity (Struck), m3 (cu.ft) 0.36 (12.7)
Capacity (Heaped), m3 (cu.ft) 0.45 (16.0)
Weight, kg (lbs) 136 (300)


Loader Dimensions
Maximum Lift Height (To Bucket Pivot Pin), mm (in) 2673 (105.2)
Maximum Lift Height Under Level Bucket, mm (in) 2431 (95.7)
Clearance With Bucket Dumped, mm (in) 2063 (81.2)
Reach At Maximum Lift Height (Dumping Reach), mm (in) 537 (21.1)
Maximum Dump Angle, degrees 41
Reach With Bucket On Ground, mm (in) 1783 (70.2)
Bucket Roll-Back Angle, degrees 27
Digging Depth, mm (in) 156 (6.1)
Overall Height In Carrying Position, mm (in) 1387 (54.6)

Operating Data
Lift Capacity To Maximum Height, At Bucket Pivot Pin, kg (lbs) 764 (1684)
Lift Capacity To Max. Height, 19.5" (0.5m) Forward Of Bucket Pivot Pin, kg (lbs) 573 (1263)
Lift Capacity To 59" (1.5m) Height, At Bucket Pivot Pin, kg (lbs) 977 (2154)
Lift Capacity To 59" (1.5m) Height, 19.5" (0.5m) Forward Of Pivot Pin, kg (lbs) 783 (1726)
Breakout Force, At Pivot Pin, Bucket At Ground, kg (Ibs) 1433 (3153)
Breakout Force, 19.5" (0.5m) Forward Of Bucket Pivot Pin At Ground, kg (Ibs) 1110 (2443)
Bucket Rollback Force At Maximum Height, kg (Ibs) 1304 (2869)
Bucket Rollback Force At 59" (1.5m), kg (Ibs) 1670 (3673)
Bucket Rollback Force At Ground Level, kg (Ibs) 1364 (3000)

Cycle Times
Raising Time, second 4.0
Lowering Time, second 2.5
Bucket Dumping Time, second 1.6
Bucket Rollback Time, second 2.5
