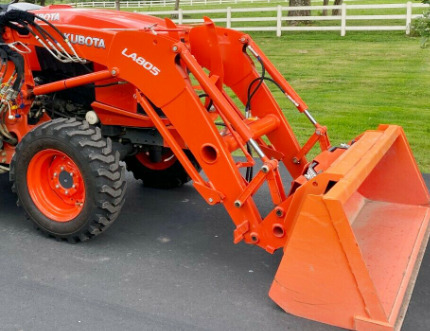

Kubota LA805 Front End Loader

The Kubota LA805 front end loader fits a Kubota L4060 tractor. The loader hydraulic system includes double-acting lift and bucket hydraulic cylinders. The loader’s maximum lift height is 104.7" (2659 mm) at pin, and clearance with bucket dumped is 80" (2033 mm).

The lifting capacity is 1715 lbs (778 kg) to maximum lift height at pin, and boom breakout force is 3301 lbs (1500 kg). The estimated cycle times are 3.2 seconds lifting to maximum height, and 1.3 seconds to full bucket dump.

The Kubota LA805 loader is equipped with a 72" (1830 mm) quick attach standard material bucket with heaped capacity of 13.1 cu.ft (0.37 cu.m).

Compatible Tractors
Tractor Models Kubota L4060
Wheel base, in (mm) 74.6 (1890)
Front tires 8,3-16
Rear tires 14,9-24
Rated flow, L/min 37.0
Maximum pressure, psi (MPa) 2630 (18.1)

Loader
Model Kubota LA805
Boom Cylinder Bore, in (mm) 1.97 (50.0)
Boom Cylinder Stroke, in (mm) 20.5 (520)
Bucket Cylinder Bore, in (mm) 1.97 (50.0)
Bucket Cylinder Stroke, in (mm) 18.3 (466)
Net weight (approximate), lb (kg) 1279 (580)

Standard Material Bucket
Type Quick attach
Bucket Capacity (struck), cu.ft (m3) 10.9 (0.31)
Bucket Capacity (heaped), cu.ft (m3) 13.1 (0.37)
Width, in (mm) 72 (1830)
Depth (Round/Square), in (mm) 18.0 (458) / 21.5 (547)
Overall height (Round/Square), in (mm) 23.9 (608) / 22.4 (570)
Length (Round/Square), in (mm) 24 (610) / 24.8 (630)
Weight (Round/Square), lb (kg) 397 (180) / 331 (150)


Loader Dimensions
Max. Lift height to bucket pivot pin, in (mm) 104.7 (2659)
Max. Lift height under level bucket, in (mm) 96.8 (2459)
Clearance with bucket dumped, in (mm) 80.0 (2033)
Reach at max. Lift height, in (mm) 23.3 (591)
Max. Dump angle, degrees 42
Reach with bucket on ground, in (mm) 69.4 (1763)
Bucket rollback angle, degrees 41
Digging depth, in (mm) 5.1 (130)
Overall height in carrying position, in (mm) 54.4 (1383)

Operating Data
Lift Capacity (Bucket pivot pin, max height), lbs (kg) 1715 (778)
Lift Capacity (500 mm forward, max height, lbs (kg) 1290 (585)
Lift Capacity (Bucket pivot pin, 1.5 M height), lbs (kg) 2202 (999)
Lift Capacity (500 mm forward, 1500 mm height), lbs (kg) 1766 (801)
Breakout Force (Bucket pivot pin), lbs (kg) 3301 (1500)
Breakout Force (500 mm forward), lbs (kg) 2549 (1160)
Bucket rollback force at max. height, lbs (kg) 2221 (1010)
Bucket rollback force at 1.5 M, lbs (kg) 3392 (1540)
Bucket rollback force at ground level, lbs (kg) 3622 (1645)

Cycle Times
Raising time, second 3,2
Lowering time, second 2
Bucket dumping time, second 1,3
Bucket rollback time, second 1,9
