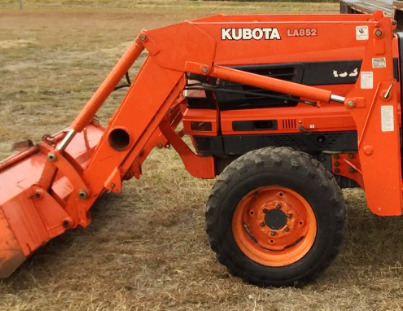

Kubota LA852 Front End Loader
The
Kubota LA852 front-end loader was designed for Kubota L4610 tractor. The loader
is equipped with double acting lift hydraulic cylinders and bucket hydraulic
cylinders.
The loader has a lift capacity (at bucket pin) of 2470 lbs (1120 kg) to
max height of 108.3" (2750 mm), and breakout force of 3972 lbs (1805
kg). The bucket dump clearance with a 45-degree max dump angle is 84.6"
(2140 mm).
The rated cycle times are 4.3 seconds lifting to full height, and 2.1
seconds full bucket dumping. The Kubota LA852 loader is compatible with
a 72" (1830 mm) standard material bucket with a heaped capacity of 13.1
cu.ft (0.37 m3).
Tractor Models |
Kubota L4610 |
Front Tires |
8,3-16 |
Rear Tires |
14,9-24 |
Hydraulic System Flow, gpm (lpm) |
9.6 (36.3) |
Loader model |
LA852 |
Boom Cylinder Bore, in (mm) |
2.36 (60) |
Boom Cylinder Stroke, in (mm) |
19.5 (496) |
Bucket Cylinder Bore, in (mm) |
2.17 (55) |
Bucket Cylinder Stroke, in (mm) |
18.5 (469) |
Net Weight, lbs (kg) |
1275 (580) |
Width, in (mm) |
72 (1830) |
Depth, in (mm) |
18.8 (477) |
Height, in (mm) |
23.9 (608) |
Length, in (mm) |
24.8 (630) |
Struck Capacity, cu.ft (m3) |
10.9 (0.31) |
Heaped Capacity, cu.ft (m3) |
13.1 (0.37) |
Weight, lbs (kg) |
362 (164) |
Maximum Lift Height to Pivot Pin, in (mm) |
108.3 (2750) |
Clearance with Bucket Dumped, in (mm) |
84.6 (2140) |
Reach at Maximum Lift Height, in (mm) |
18.5 (460) |
Maximum Dump Angle, degrees |
45 |
Reach with Bucket on Ground, in (mm) |
68.3 (1730) |
Maximum Rollback Angle, degrees |
35 |
Lift Capacity to Max. Height at Pivot Point, lbs (kg) |
2470 (1120) |
Lift Capacity to Max. Height at 500 mm from Pivot Point, lbs (kg) |
1830 (830) |
Breakout Force at Pivot Point, lbs (kg) |
3972 (1805) |
Breakout Force at 19.7 in. (500 mm) from Pivot Point, lbs (kg) |
3055 (1385) |
Loader raise, sec. |
4,3 |
Loader lower, sec. |
2,7 |
Bucket dump, sec. |
2,1 |
Bucket rollback, sec. |
2,8 |
