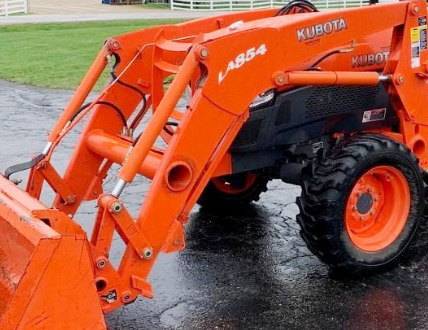

Kubota LA854 Front End Loader

The Kubota LA854 loader is fitted to Kubota L5040, L5240, L5740 tractors. The front end loader hydraulic system includes double-acting lift and bucket hydraulic cylinders.

The loader has a lifting capacity (at pivot pin) of 1129 kg (2489 lbs) to a 2863 mm (112.7 inches) max height and bucket's breakout force of 1906 kg (4195 lbs). The bucket dump clearance with a 45-degree max dump angle is 2255 mm (88.8 inches).

The raising cycle time is 4.2 sec from ground line to max height, and bucket dumping time is 1.8 sec. The Kubota LA854 front-end loader is equipped with a 72" (1830 mm) standard material bucket with a heaped capacity of 16 cu.ft (0.45 m3).

Compatible Tractors
Tractor model Kubota L5040, L5240, L5740
Wheel base, mm (in) 1915 (75.4)
Front tires 9,5-16
Rear tires 14,9-26
Rated flow, lpm (gpm) 37 (9.8)
Maximum pressure, kg/cm2 (psi) 185 (2630)

Loader
Loader model LA854
Net weight, kg (lbs) 590 (1300)
Boom cylinder bore, mm (in) 60 (2.36)
Boom cylinder stroke, mm (in) 496 (19.5)
Bucket cylinder bore, mm (in) 55 (2.17)
Bucket cylinder stroke, mm (in) 469 (18.5)

Standard Material Bucket
Width, mm (in) 1830 (72)
Depth, mm (in) 607 (23.9)
Height, mm (in) 570 (22.4)
Length, mm (in) 691 (27.2)
Bucket Capacity (Struck), m3 (cu.ft.) 0.36 (12.7)
Bucket Capacity (Heaped), m3 (cu.ft.) 0.45 (16.0)
Weight, kg (lbs) 136 (300)


Loader Dimensions
Max. lift height (To bucket pivot pin), mm (in) 2863 (112.7)
Max. lift height under level bucket, mm (in) 2659 (104.7)
Clearance with bucket dumped, mm (in) 2255 (88.8)
Reach at max. lift height (Dumping reach), mm (in) 570 (22.4)
Max. dump angle, deg 45
Reach with bucket on ground, mm (in) 1919 (75.6)
Bucket rollback angle, deg 42
Digging depth, mm (in) 177 (7.0)
Overall height in carrying position, mm (in) 1410 (55.5)

Operating Data
Lift capacity to max. height (Bucket bottom mid point), kg (lbs) 850 (1874)
Lift capacity (Bucket pivot pin, max. height), kg (lbs) 1129 (2489)
Lift capacity (500 mm forward, max. height), kg (lbs) 852 (1878)
Lift capacity (Bucket pivot pin, 1500 mm (59 in.) height), kg (lbs) 1405 (3097)
Lift capacity (500 mm forward, 1500 mm height), kg (lbs) 1138 (2509)
Breakout force (Bucket pivot pin), kg (lbs) 1906 (4195)
Breakout force (500 mm forward), kg (lbs) 1485 (3267)
Bucket rollback force at max. height, kg (lbs) 1252 (2754)
Bucket rollback force at 1500 mm (59 in.), kg (lbs) 1938 (4264)
Bucket rollback force at ground level, kg (lbs) 1990 (4378)

Cycle Times
Raising time, sec. 4,2
Lowering time, sec. 2,8
Bucket dumping time, sec. 1,8
Bucket rollback time, sec. 2,3
