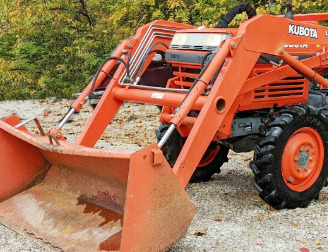

Kubota LB400 Front End Loader

The Kubota LB400 loader fits Kubota L2600, L2950 tractors. The loader has double acting bucket and lift hydraulic cylinders. The Kubota LB400 front-end loader has a max lift height of 2330 mm (92.1 in) at pin and bucket dump clearance of 1830 mm (72.4 in).

The lift capacity is 480 kg (1060 lbs) to max height at pin, and boom breakout force is 1048 kg (2305 lbs). The rated cycle times are 3.1 seconds raising to maximum height, and 2.3 seconds maximum bucket dumping. The Kubota LB400 loader is compatible with a 60" (1525 mm) standard material bucket with a rated capacity of 0.28 m3 (9.9 cu.ft).

Compatible Tractors
Tractor model Kubota L2600, L2950
Front tires 7.00x16
Rear tires 12.4x24
Rated flow, lpm (gpm) 26.5 (7.0)
Maximum pressure, bar (psi) 170 (2500)

Loader
Loader model Kubota LB400
Net weight, kg (lbs) 290 (625)
Boom cylinder bore, mm (in) 44.5 (1.75)
Boom cylinder stroke, mm (in) 435 (17.1)
Bucket cylinder bore, mm (in) 44.5 (1.75)
Bucket cylinder stroke, mm (in) 450 (17.7)

Standard Material Bucket
Width, mm (in) 1525 (60.0)
Depth, mm (in) 485 (19.1)
Height, mm (in) 540 (21.3)
Length, mm (in) 570 (22.4)
Capacity (Struck), m3 (cu.ft.) 0.23 (8.1)
Capacity (Heaped), m3 (cu.ft.) 0.28 (9.9)
Weight, kg (lbs) 82 (181)

Loader Dimensions
Maximum lift height to pivot pin, mm (in) 2330 (92.1)
Clearance with bucket dumped, mm (in) 1830 (72.4)
Reach at maximum height, mm (in) 650 (25.8)
Maximum dump angle, degrees 41
Reach with bucket on ground, mm (in) 1610 (63.4)
Bucket rollback angle, degrees 21
Digging depth, mm (in) 135 (5.3)
Overall height in carrying position, mm (in) 1195 (47.0)

Operating Data
Lift capacity to maximum height (bucket bottom mid point), kg (lbs) 400 (882)
Lift capacity to maximum height at pivot pin, kg (lbs) 480 (1060)
Lift capacity to maximum height at 19.5" (0.5m) forward of pivot pin, kg (lbs) 345 (760)
Lift capacity to 59" (1.5m) height at pivot pin, kg (lbs) 600 (1325)
Lift capacity to 59" (1.5m) height at 19.5" (0.5m) forward of pivot pin, kg (lbs) 455 (1005)
Breakout force at pivot pin, kg (lbs) 1048 (2305)
Breakout force at 19.5" (0.5m) forward of pivot pin, kg (lbs) 749 (1653)

Cycle Times
Raise to full height 3.1 sec.
Lowering time self level valve 2.6 sec.
Bucket rollback time 1.9 sec.
Bucket dumping time 2.3 sec.
