Home / Attachments / Kubota Front End Loaders / Kubota LB702

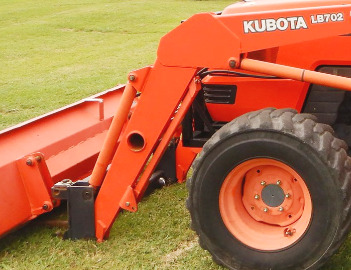

Kubota LB702 Front End Loader

The Kubota LB702 loader is available for Kubota MX5000 tractor. The Kubota LB702 loader has double acting hydraulic lifting and bucket cylinders. The loader’s maximum lift height is 100" (2540 mm) at pin, and clearance with bucket dumped is 81.1" (2050 mm). The lifting capacity is 1852 lbs (840 kg) at maximum height (bucket pin), and breakout force is 2610 lbs (1183 kg).

The raising time is 3.5 sec from ground line to max height, and bucket dumping time is 1.5 sec. Compatible buckets for the Kubota LB702 front-end loader: a 72" (1830 mm) standard material bucket with a rated capacity of 0.37 m3 (13.1 cu.ft), and 72" (1830 mm) light material bucket with a rated capacity of 0.45 m3 (16 cu.ft).

Compatible Tractors
Tractor Model Kubota MX5000
Front Tire Size 12x16.5
Rear Tire Size 17.5Lx24
Pump Flow, gpm (lpm) 9.2 (35.0)
Hydraulic Pressure, bar (psi) 180 (2630)

Loader
Loader Model Kubota LA1065
Leveling System Non self leveling
Net Weight (approximate), lb (kg) 1100 (500)

Standard Material Bucket
Bucket Type Quick attach
Width, in (mm) 72 (1830)
Depth, in (mm) 18 (460)
Height, in (mm) 23.9 (610)
Struck Capacity, cu.ft (m3) 10.9 (0.31)
Heaped Capacity, cu.ft (m3) 13.1 (0.37)
Weight, lbs (kg) 330 (150)

Light Material Bucket
Bucket Type Pin-on
Width, in (mm) 72 (1830)
Depth, in (mm) 23.9 (605)
Height, in (mm) 22.4 (570)
Struck Capacity, cu.ft (m3) 12.7 (0.36)
Heaped Capacity, cu.ft (m3) 16.0 (0.45)
Weight, lbs (kg) 300 (137)

Loader Dimensions
Maximum Lift Height at Pin, in (mm) 100 (2540)
Clearance with Bucket Dumped, in (mm) 81.1 (2050)
Reach at Maximum Height, in (mm) 29.1 (730)
Maximum Dump Angle, deg 43
Reach with Bucket on Ground, in (mm) 64 (1620)
Bucket Rollback Angle, deg 23
Digging Depth, in (mm) 4.2 (105)

Operating Data
Lift Capacity to Full Height at Pin, lbs (kg) 1852 (840)
Lift Capacity to Full Height at 19.7" (0.5m) ahead of Pin, lbs (kg) 1385 (630)
Breakout Force at Pin, lbs (kg) 2610 (1183)

Cycle Times
Raising Time, sec 3.5
Lowering Time, sec 2.4
Bucket Dumping Time 1.5
Bucket Rollback Time 2.2
