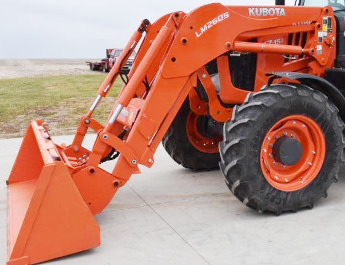

Kubota LM2605 Front End Loader

The Kubota LM2605 mechanical self leveling front end loader is designed for Kubota M7131, M7151, M7132, M7152 tractors. The front end loader has double acting hydraulic bucket and lift cylinders. The Kubota LM2605 front end loader has a lift capacity of 5776 lbs (2620 kg) at bucket pin to max height of 167" (4250 mm), and breakout force (bucket on ground) of 9069 lbs (4114 kg). The clearance with a bucket dumped is 131" (3321 mm) at maximum dump angle of 59 degrees.

The estimated cycle times are 6.4 seconds lifting to max height, and 5.1 seconds maximum bucket dumping. The Kubota LM2605 loader is compatible with a 96" (2430 mm) standard material bucket with a rated capacity of 0.94 m3 (33.4 cu.ft).

Compatible Tractors
Tractor Models Kubota M7131, M7151, M7132, M7152
Front Tires 14.9R28
Rear Tires 18.4R38
Hydraulic System Flow, gpm (lpm) 29.0 (110.0)

Loader
Loader Model Kubota LM2605
Leveling System Mechanical Self Leveling
Weight (approximate), lb (kg) 1860 (845)

Standard Material Bucket
Width, in (mm) 96 (2430)
Struck Capacity, cu.ft (m3) 27.7 (0.78)
Heaped Capacity, cu.ft (m3) 33.4 (0.94)
Weight, lbs (kg) 640 (290)

Loader Dimensions
Maximum lift height to bucket pivot pin, in (mm) 167 (4250)
Maximum lift height under level bucket, in (mm) 156 (3972)
Clearance with bucket dumped 45 deg, lowest point of cutting edge, in (mm) 131 (3321)
Maximum dump angle, loader fully raised, degrees 59
Maximum rollback angle, bucket at ground, degrees 42
Digging depth, in (mm) 3.9 (100)

Operating Data
Lift capacity to maximum height at bucket pivot pin, lbs (kg) 5776 (2620)
Lift capacity to maximum height at 31.5" (0.8m) forward of bucket pivot pin, lbs (kg) 5765 (2615)
Boom breakout force at pivot pin (bucket on ground), lbs (kg) 9069 (4114)
Boom breakout force at 31.5" (0.8m) forward of bucket pivot pin at ground, lbs (kg) 7968 (3614)
Bucket rollback force at maximum height, lbs (kg) 5972 (2709)
Bucket rollback force at bucket on ground, lbs (kg) 10825 (4910)

Cycle Times
Raise to full height 6.4 sec.
Lowering time 8.1 sec.
Bucket dumping time 5.1 sec
Bucket rollback time 4.6 sec.
