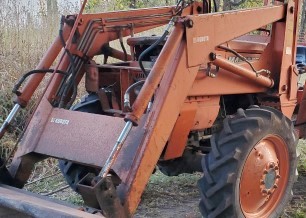

Kubota M1820 Front-End Loader
The
Kubota M1820 loader is used for Kubota M4500, M5500, M7500 tractors. The loader
hydraulic system includes double-acting bucket and lift hydraulic cylinders. The
Kubota M1820 front end loader has a lifting capacity (at pivot pin) of 2500 lbs
(1134 kg) to maximum height of 132" (3350 mm), and bucket's breakout force of
4930 lbs (2236 kg). The bucket dump clearance is 103.5" (2620 mm) at maximum
dump angle of 39 degrees.
The rated cycle times are 4.2 seconds lifting to maximum height, and 2.2 seconds to full bucket dump. The Kubota M1820 loader is compatible with a 66" (1675 mm) standard material bucket with a rated capacity of 0.53 m3 (19 cu.ft), and 72" (1830 mm) standard material bucket with a rated capacity of 0.57 m3 (20.2 cu.ft).
| Compatible Tractor Models |
Tractor Models .................... Kubota M4500, M5500, M7500
Front Tyre Size .................... 9.5x24
Rear Tyre Size .................... 16.9x28
Hydraulic Flow, gpm (lpm) .................... 8.1 (30.7)
Maximum Pressure, psi (bar) .................... 2200 (152)
| Loader |
Loader Model .................... Kubota M1820
Leveling System .................... Non-Self Leveling
Attachment Type .................... Pin-On
| Standard Material Buckets |
Width, in (mm) .................... 66 (1675)
Depth, in (mm) .................... 20.5 (520)
Height, in (mm) .................... 21.3 (540)
Bucket Capacity (Struck), cu.ft (m3) .................... 15.7 (0.44)
Bucket Capacity (Heaped), cu.ft (m3) .................... 19.0 (0.53)
Weight, lbs (kg) .................... 253 (115)
Width, in (mm) .................... 72 (1830)
Depth, in (mm) .................... 20.5 (520)
Height, in (mm) .................... 21.3 (540)
Bucket Capacity (Struck), cu.ft (m3) .................... 16.8 (0.47)
Bucket Capacity (Heaped), cu.ft (m3) .................... 20.2 (0.57)
Weight, lbs (kg) .................... 275 (125)
| Loader Dimensions |
Maximum Lift Height at Pivot Pin, in (mm) .................... 132 (3350)
Clearance with Bucket Dumped, in (mm) .................... 103.5 (2620)
Digging Depth, in (mm) .................... 3.1 (76)
Reach at Maximum Lift Height, in (mm) .................... 33.8 (850)
Reach with Bucket on Ground, in (mm) .................... 76.5 (1940)
Maximum Dump Angle, deg .................... 39
Maximum Rollback Angle, deg .................... 42
| Operating Specifications |
Lift Capacity to Full Height at Pivot Pin, lbs (kg) .................... 2500 (1134)
Breakout Force at Pivot Pin, lbs (kg) .................... 4930 (2236)
| Cycle Times |
Loader Raise Time, sec .................... 4.2
Loader Lower Time, sec .................... 3.5
Bucket Dump Time, sec .................... 2.2
Bucket Rollback Time, sec .................... 2.1
